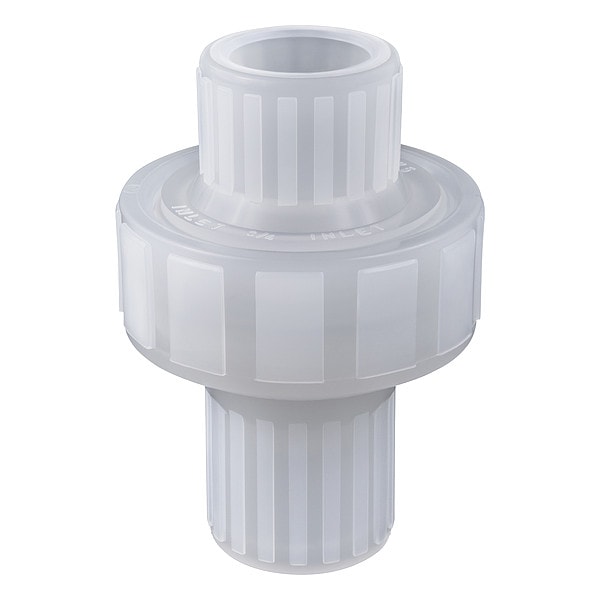

1" FNPT Polypropylene Disc Check Valve

  • Mfr # CKM100V-PP
  • Zoro # G4099557
product price:
$
191.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
Threaded
Connection
FNPT
Body Material
PolyPro
Seat Material
FKM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CKM100V-PP
Zoro #
G4099557
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1"
Width
2 51/64 in
Overall Height
4 45/64 in
Size
1"
Length
4 23/32 in
Pipe or Tube Size - Check Valves
1 in
Overall Length
4.72 in
Pipe or Tube Size
1 in
Nominal Valve Size
1 in
Connection Size - Side 1
1 in
Height - Cap to Inlet Center
2 15/16 in
Wire Rope Length
4.72 in

Details

Connection Type
Threaded
Connection
FNPT
Body Material
PolyPro
Seat Material
FKM
Sub-Category
Polypropylene
Max. Temp. - Valves
180 Degrees F
Item
Check Valve
Seal Material - Check Valves
Viton
Seal Material
FKM
Flow Design
Single
Max. Water Pressure - Valves
100 psi @ 77 Degrees F
Full Flow - Valves
No
Max. Steam Pressure - Valves
Not Rated
Mechanism and Body Design
Inline Disc
Material of Construction
polypropylene
Flow - Valves
12.0 gpm
Mounting Orientation - Check Valves
Horizontal, Vertical
Cracking Pressure - Check Valves
1.000 to 1.500 psi
Max. Temp.
180 Degrees F
Min. Temp. - Valves
32 Degrees F
Standards
LEAD FREE COMPLIANT
Cracking Pressure
1 psi
Connection Type - Check Valves
FNPT x Socket
Max. Pressure
Max Inlet Pressure: 150 psi, Max Back Pressure: 100 psi
Application - Valves
Corrosives
Seat Material - Check Valves
Viton
Mounting Position
Any
Body Material - Valves
Polypropylene
Cap to Inlet Center
2 29/32 in
Item - Check Valves
Check Valve
Flow
12 gpm
Mounting Orientation
Horizontal, Vertical
Seal
Viton
Includes Counterweight
No Counterweight
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
For Media
Corrosives
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Valve Body Style
Inline
Silent Check
Silent
Check Mechanism
Diaphragm
Connection Type - Side 2
Socket
Check Mechanism Material
FKM
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
100 psi
Valve Series
CKM

Description

PLAST-O-MATIC CKM100V-PP is a 1 in. inline disc check valve with a polypropylene body for use with compatible corrosive media. It is configured for one-direction flow and reverse-flow control in compatible piping systems. This valve features a single-flow design with a diaphragm check mechanism and can be mounted horizontally or vertically.

Key Features:

  • 1 in. valve size with FNPT x socket end connections
  • Polypropylene body with FKM/Viton seal and seat materials
  • For use with compatible corrosive media
  • Inline disc body design with single flow path
  • Cracking pressure: 1.000 to 1.500 psi
  • Flow rating: 12 gpm
  • Operating temperature range: 32 degrees F to 180 degrees F
  • Maximum water pressure: 100 psi at 77 degrees F
  • Maximum inlet pressure: 150 psi
  • Maximum back pressure: 100 psi
  • Mounting orientation: horizontal or vertical
  • Diaphragm check design
