Plast-O-Matic

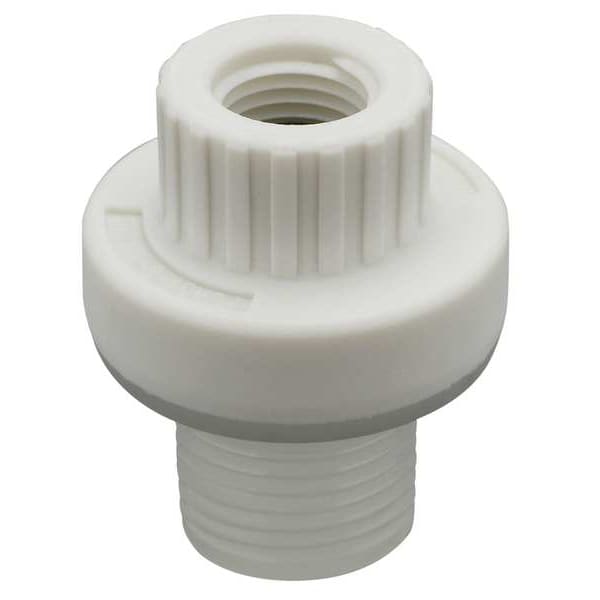

Gauge Guard, Polypropylene, 1/4 In FNPT

product price: $50.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material polypropylene
  • Max. Pressure 250 psi
  • Diaphragm Material Buna-N
  • (F)NPT Fitting (In.) 1/2 in
  • Gauge Port (F)NPT (In.) 1/4 in
See all product information

Product Information

Dimensions

Gauge Port Size 1/2 in NPT
Overall Length 1.375 in
Overall Width 1.38 in
Connection Size 1/4 in

Details

Item Gauge Guard
Material polypropylene
Max. Pressure 250 psi
Diaphragm Material Buna-N
(F)NPT Fitting (In.) 1/2 in
Gauge Port (F)NPT (In.) 1/4 in
Accuracy +/-4%
Max. Temp. 180 Degrees F
Ambient Operating Temperature Range 0 Degrees to 185 Degrees F
Body Material Polypropylene
Mounting Inline
Maximum Pressure 250 psi
Compatible Brand and Series Universal
Connection Type FNPT
Series GGME
O-Ring Material Buna-N
Application Marine Applications, Spas, Swimming Pools, Water Conservation, Water Softening
Connector Material Glass-Filled Polypropylene

Description

Gauge Guard, Connection Size 1/4 in, Connection Type FNPT, Diaphragm Material Buna-N, Maximum Pressure 250 psi, O-Ring Material Buna-N, Body Material Polypropylene, Connector Material Glass-Filled Polypropylene, Ambient Operating Temperature Range 0 Degrees to 185 Degrees F, Series GGME, Compatible Brand and Series Universal, Gauge Port Size 1/2 in NPT, Accuracy +/-4 Percent, Application Marine Applications, Spas, Swimming Pools, Water Conservation, Water Softening, Mounting Inline
