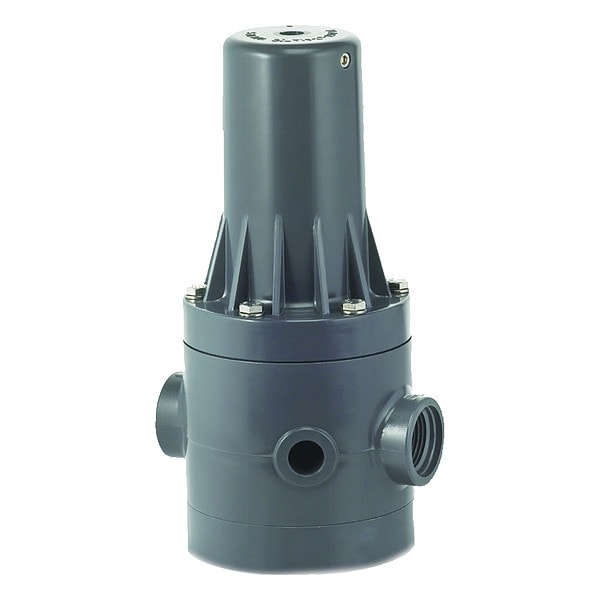

Pressure Regulator, 1 In, 5 to 125 psi
- Mfr # PRHM100V-PV
- Zoro # G4074874
product price:Â
$
1,104.99
/ea
Free Shipping & Returns
Key Features
Series
PRHM
Body Material
PVC
Inlet Size
1 in
Outlet Size
1 in
Length
5 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PRHM100V-PV
- Zoro #
- G4074874
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Regulator
- Series
- PRHM
- Body Material
- PVC
- Connection Type
- NPT
- Seal Material
- FKM
- Application
- Industrial Use
- Max. Pressure
- 150 psi
- Max. Temp.
- 140 Degrees F
- Pressure Adjustment Range
- 5 to 125 psi
- Includes
- Intrinsic Gauge Guard, Pressure Gauge
- Standards
- ISO 9001:2015
- Outlet Connection Type
- NPT
- Inlet Connection Gender
- Female
- Operating Temperature - Maximum
- 140 Degrees F
- Pilot Adjustment - Maximum
- 125 psi
- Outlet Connection Gender
- Female
- Pilot Adjustment - Minimum
- 5 psi
- Operating Pressure Differential - Maximum
- 150 psi
- Inlet Connection Type
- NPT
- Operating Pressure - Minimum
- 10 psi
- Operating Pressure - Maximum
- 150 psi
- Operating Temperature - Minimum
- 40 Degrees F
Dimensions
- Inlet Size
- 1 in
- Outlet Size
- 1 in
- Length
- 5 1/2 in
- Height
- 10 1/8 in
- Pipe Size
- 1 in
- Overall Height
- 10 1/8 in
- Outlet Connection Size
- 1 in
- Inlet Connection Size
- 1 in
- Overall Width
- 5 1/2 in
Description
Pressure Regulator, Series PRHM, Body Material PVC, Inlet Size 1 in, Outlet Size 1 in, Length 5 1/2 in, Height 10 1/8 in, Application Industrial Use, Connection Type FNPT, Pressure Adjustment Range 5 to 125 psi, Gauge Port Size Not Applicable, Seal Material FKM, Max. Temp. 140 Degrees F, Pipe Size 1 in, Max. Pressure 150 psi, Standards ISO 9001:2015, Includes Intrinsic Gauge Guard, Pressure Gauge
