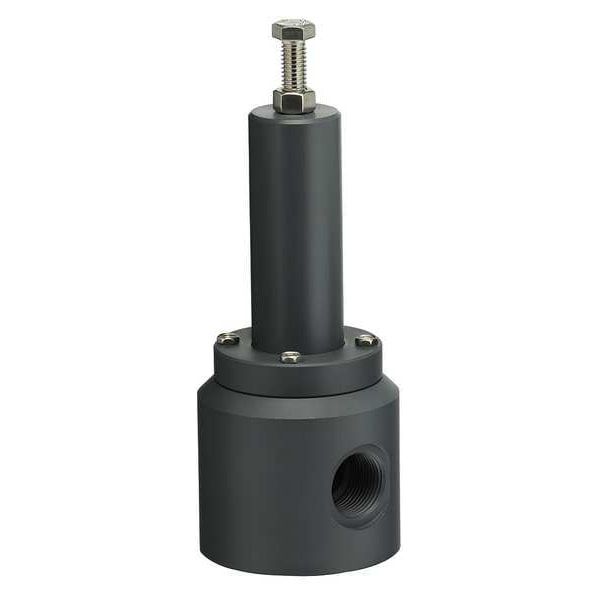

Pressure Relief Valve, 1 In, 5 to 100 psi
- Mfr # RVT100V-PV
- Zoro # G3997271
product price:Â
$
667.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
1"
Outlet Size
1"
Body Material
PVC
Outlet Type
FNPT
Inlet Type
FNPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RVT100V-PV
- Zoro #
- G3997271
- UPC #
- -
- Country of Origin
- United States
- Body Material
- PVC
- Item
- Adjustable Back Pressure Relief Valve
- Outlet Type
- FNPT
- Inlet Type
- FNPT
- Pressure Range
- 5 to 100 psi
- Temp. Range
- 32 Degrees to 140 Degrees F
- Test Lever
- Test Lever Not Included
- Application
- Acids, Highly Corrosive Liquids
- Spring Material
- Plated Steel
- Seat Material
- FKM
- Factory Set Pressure
- 100 psi
- Standards
- ISO 9001:2015
- Product Type
- Pressure Relief Valve
- Operating Temperature - Maximum
- 140 Degrees F
- Pilot Adjustment - Minimum
- 5 psi
- Outlet Connection Type
- NPT
- For Media
- Acids, Corrosive Liquids
- Operating Temperature - Minimum
- 32 Degrees F
- Operating Pressure - Minimum
- 5 psi
- Operating Pressure - Maximum
- 125 psi
- Inlet Connection Type
- NPT
- Outlet Connection Gender
- Female
- Inlet Connection Gender
- Female
- Pilot Adjustment - Maximum
- 125 psi
Dimensions
- Inlet Size
- 1"
- Outlet Size
- 1"
- Overall Height
- 9 13/16 in
- Overall Length
- 3 in
- Inlet Connection Size
- 1 in
- Outlet Connection Size
- 1 in
- Wire Rope Length
- 3 in
- Length
- 3 in
Description
Adjustable Back Pressure Relief Valve, Body Material PVC, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 150 psi, Pressure Range 5 to 100 psi, Not Applicable BtuH, Overall Height 9 13/16 in, Overall Length 3 in, Seat Material FKM, Spring Material Plated Steel, Temp. Range 32 Degrees to 140 Degrees F, Test Lever Test Lever Not Included, Standards ISO 9001:2015
