Shop PNEUMADYNE

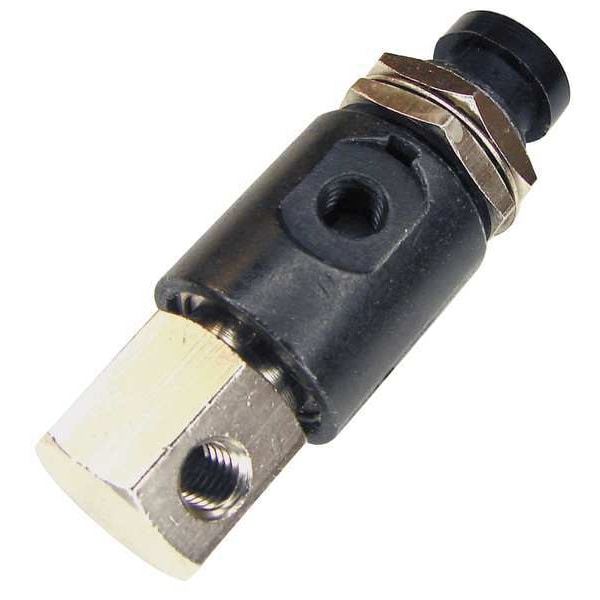

Control Valve, 3-Way, No 10-32 FNPT

  • Mfr # A0-30-3

  • Zoro # G3892533

product price:
$
19.79
/ea

Key Features

Actuator/Return
Button/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
O
Number of Ways
Three-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A0-30-3
Zoro #
G3892533
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Button/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
O
Number of Ways
Three-Way
Number of Positions
Two-Position
Connection
NPT
Valve Max. Pressure Rating
125 psi
Air Valve Type
3-Way, 2-Position
Normally Open / Normally Closed
Normally Closed
Temp. Range
-20 Degrees to 160 Degrees F
Body Material
Aluminum, Brass
Valve Temp. Range
-20 Degrees to 160 Degrees F
Valve Actuator / Return
Button / Spring
Max. Pressure
125 psi
Valve Ways and Positions
3-Way/2-Position
CFM
17.3
Max. CFM - Valves
17.3 cfm
Application
Plumbing
Seal Material
Buna-N
Flow Rate - Maximum
17.3 scfm
Vacuum Rating
Vacuum Operable
Operating Temperature - Maximum
160 Degrees F
Operating Pressure - Maximum
125 psi
Return Action
Spring Return
Fill Time
0.02 sec
Product Type
Manual Air Control Valve
Valve Port Connection Gender
Female
Valve Port Connection Type
UNF
Valve Action
Normally Closed
Exhaust Port Connection Type
Unthreaded
Operating Temperature - Minimum
-20 Degrees F
Operating Pressure - Minimum
12.7 psi
Exhaust Time
0.06 sec
Actuation Force @ 125 psi
5.5 lb
For Media
Air
Actuator Type
Button
Force @ 50 psi
3 lb
Coefficient of Volume (Cv)
0.24

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 10-32 UNF, Connection NPT, Valve Actuator / Return Button / Spring, Max. CFM - Valves 17.3 cfm, Valve Max. Pressure Rating 125 psi, Valve Temp. Range -20 Degrees to 160 Degrees F, Center Position Closed, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.2, Body Material Aluminum, Brass, Overall Length 2 1/4 in, Overall Height 5/8 in, Overall Width 5/8 in, Series O, Manual Air Control Valve
