  11. Manifold, 90, Metal, NPT, 3/8 In.
Shop All Manifolds
Pneumadyne

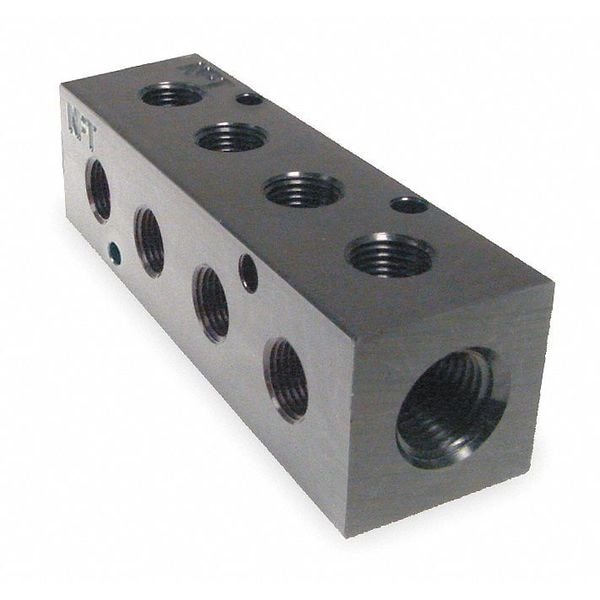

Manifold, 90, Metal, NPT, 3/8 In.

product price: $18.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Fitting Material Black Anodized Aluminum
  • Number of Inlets 2
  • Number of Outlets 4
  • Inlet Size 3/8 in
  • Outlet Size 1/4 in
See all product information

Product Information

Dimensions

Inlet Size 3/8 in
Outlet Size 1/4 in
Overall Length 3.88 in
Overall Width 1.25 in
Overall Height 1.25 in
Mounting Hole Size 0.2 in
Inlet Connection Size 3/8 in
Mounting Hole Diameter 0.2 in
Outlet Connection Size 1/4 in

Details

Item Manifold
Pipe Fitting Material Black Anodized Aluminum
Number of Inlets 2
Number of Outlets 4
Fitting Connection Type NPT
Pipe Fitting Connection Type NPT
Max. Pressure 1000 psi
Temp. Range -10 Degrees to 200 Degrees F
Manifold Shape Rectangle
Maximum Operating Temperature 200 Degrees F
Outlet Connection Gender Female
Resistance Properties Corrosion Resistant
Manifold Material Finish Black Anodized
For Fluid Type Fluid, Gas
Manifold Material Grade 6061
Minimum Operating Temperature -10 Degrees F
Maximum Operating Pressure 3,000 psi
Outlet Spacing 7/8 in
Outlet Connection Type NPT
Flow Direction Right-Angle
Inlet Connection Gender Female
For Potable Water Use Yes
Inlet Connection Type NPT
Manifold Material Aluminum
Number of Mounting Holes 2

Description

Manifold, Flow Direction Right-Angle, For Fluid Type Fluid, Gas, Inlet Connection Gender Female, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Manifold Material Aluminum, Manifold Material Finish Black Anodized, Manifold Material Grade 6061, Maximum Operating Pressure 3,000 psi, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature -10 Degrees F, Number of Inlets 2, Number of Mounting Holes 2, Number of Outlets 4, Outlet Connection Gender Female

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
