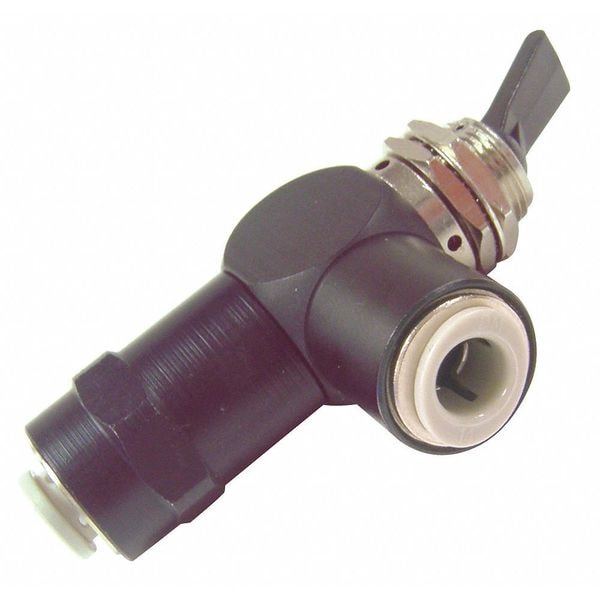

Pneumadyne Toggle Valve, NC, 1/4 In, Push In F11-30-66 - main

Toggle Valve, NC, 1/4 In, Push In

  • Mfr # F11-30-66

  • Zoro # G4259455

product price: $53.45
/ea

Key Features

Coefficient of Volume
0.29
Number of Ways
Three-Way
Series
11
Overall Height
1 3/16 in
Overall Length
2 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F11-30-66
Zoro #
G4259455
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
1 3/16 in
Overall Length
2 9/16 in
Pipe Size
1/4"
Valve Port Connection Size
1/4 in

Details

Item
Manual Air Control Valve
Coefficient of Volume
0.29
Number of Ways
Three-Way
Series
11
Connection Type
Push-In
Max. Pressure
125 psi
CFM @ 75 PSI
22.1 cfm
Valve Configuration
Normally Closed
Seat Material
Buna-N
Body Material
Aluminum, Brass
Handle Type
Spring Return Toggle
Valve Design
3-Way
Seal Material
Buna-N
Stem Material
brass
Temp. Range
-20 Degrees to 160 Degrees F
Exhaust Time
0.05 sec
Operating Temperature - Maximum
160 Degrees F
Fill Time
0.01 sec
Product Type
Manual Air Control Valve
Operating Temperature - Minimum
-20 Degrees F
Coefficient of Volume (Cv)
0.29
Vacuum Rating
Vacuum Operable
Valve Port Connection Type
Push-On
Valve Action
Normally Closed
Exhaust Port Connection Type
Unthreaded
Actuation Force @ 125 psi
0.88 lb
Flow Rate - Maximum
22.1 scfm
Operating Pressure - Minimum
0 psi
Operating Pressure - Maximum
125 psi
Force @ 50 psi
8 oz
Return Action
Spring Return
Actuator Type
Toggle

Description

Manual Air Control Valve, Connection Push-In, Coefficient of Volume 0.29, Body Material Aluminum, Brass, Overall Length 2 9/16 in, Overall Height 1 3/16 in, Series 11
