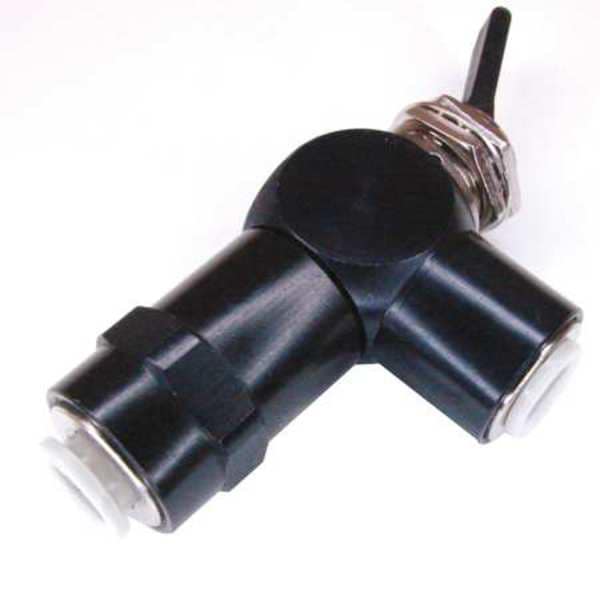

Pneumadyne Toggle Valve, NC, 1/4 In Push In H11-30-66 - main

Toggle Valve, NC, 1/4 In Push In

  • Mfr # H11-30-66

  • Zoro # G4265895

product price: $51.15
/ea

Key Features

Coefficient of Volume
0.29
Series
11
Number of Ways
Three-Way
Overall Height
1 3/16 in
Overall Length
2 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H11-30-66
Zoro #
G4265895
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
1 3/16 in
Overall Length
2 9/16 in
Pipe Size
1/4"
Valve Port Connection Size
1/4 in

Details

Item
Manual Air Control Valve
Coefficient of Volume
0.29
Series
11
Number of Ways
Three-Way
Connection Type
Push-In
Seat Material
Buna-N
Valve Design
3-Way
Stem Material
brass
Valve Configuration
Normally Closed
Seal Material
Buna-N
Temp. Range
-20 Degrees to 160 Degrees F
CFM @ 75 PSI
22.1 cfm
Handle Type
Detented Toggle
Body Material
Aluminum, Brass
Max. Pressure
125 psi
Force @ 50 psi
8 oz
Exhaust Port Connection Type
Unthreaded
Operating Temperature - Minimum
-20 Degrees F
Product Type
Manual Air Control Valve
Flow Rate - Maximum
22.1 scfm
Actuation Force @ 125 psi
0.88 lb
Operating Pressure - Minimum
0 psi
Actuator Type
Toggle
Valve Port Connection Type
Push-On
Operating Temperature - Maximum
160 Degrees F
Exhaust Time
0.05 sec
Operating Pressure - Maximum
125 psi
Valve Action
Normally Closed
Return Action
Detent
Vacuum Rating
Vacuum Operable
Fill Time
0.01 sec
Coefficient of Volume (Cv)
0.29

Description

Manual Air Control Valve, Connection Push-In, Coefficient of Volume 0.29, Body Material Aluminum, Brass, Overall Length 2 9/16 in, Overall Height 1 3/16 in, Series 11
