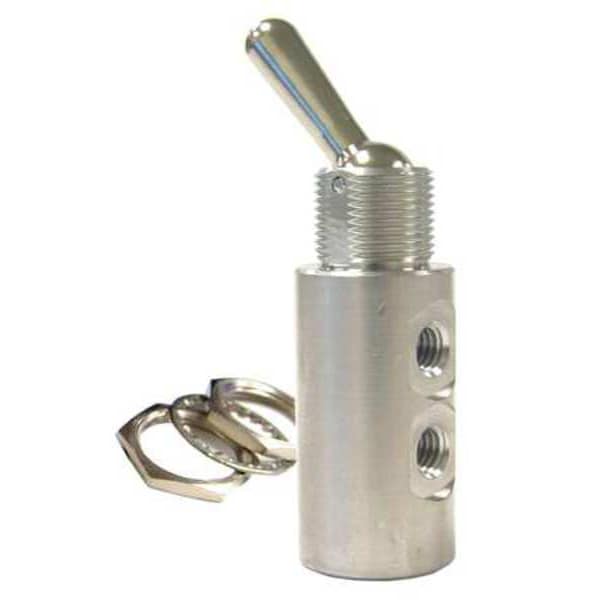

Toggle Valve, Stainless Steel, NC

  • Mfr # C032021

  • Zoro # G4272432


product price: $68.59
/ea

Key Features

Coefficient of Volume
0.27
Number of Ways
Three-Way
Series
300
Overall Length
2 1/8 in
Connection Type
UNF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C032021
Zoro #
G4272432
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
2 1/8 in
Pipe Size
10-32
Valve Port Connection Size
10-32

Details

Item
Manual Air Control Valve
Coefficient of Volume
0.27
Number of Ways
Three-Way
Series
300
Connection Type
UNF
Valve Design
3-Way
Temp. Range
-20 Degrees to 160 Degrees F
Max. Pressure
125 psi
Body Material
Stainless Steel
Valve Configuration
Normally Closed
Seat Material
Buna-N
Stem Material
303 Stainless Steel
Handle Type
Detented Metal Toggle
CFM @ 75 PSI
20 cfm
Seal Material
Buna-N
Application
Plumbing
Product Type
Manual Air Control Valve
Coefficient of Volume (Cv)
0.27
Valve Port Connection Type
UNF
Operating Temperature - Maximum
160 Degrees F
Actuator Type
Toggle
Exhaust Time
0.035 sec
Return Action
Detent
Operating Pressure - Minimum
12.7 psi
Fill Time
0.014 sec
Valve Port Connection Gender
Female
Vacuum Rating
Vacuum Operable
Flow Rate - Maximum
20 scfm
Force @ 50 psi
6 oz
Operating Temperature - Minimum
-20 Degrees F
Operating Pressure - Maximum
125 psi
Actuation Force @ 125 psi
0.69 lb
Valve Action
Normally Closed

Description

Manual Air Control Valve, Coefficient of Volume 0.27, Body Material Stainless Steel, Overall Length 2 1/8 in, Series 300
