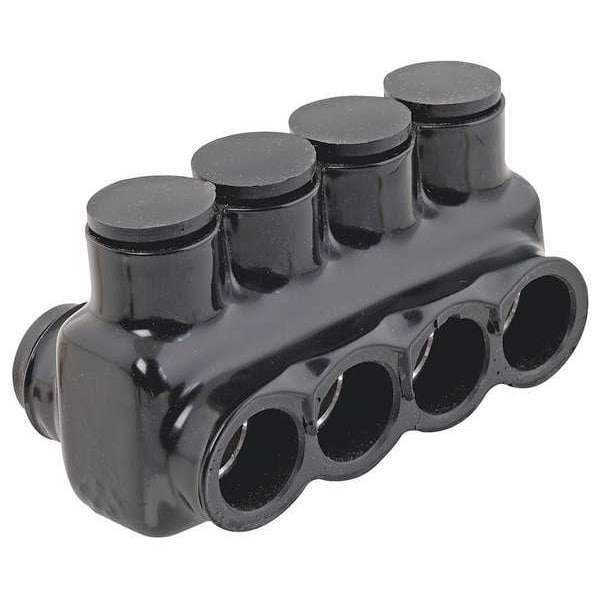

Insulated Multitap Connector, 1.57 In. W
Mfr # IPLD600-4B
Zoro # G9109877
product price: $116.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Double-Sided Entry
For Wire Size
600 kcmil
Number of Ports
4
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IPLD600-4B
Zoro #
G9109877
UPC #
662381970152
Country of Origin
United States
Dimensions
For Wire Size
600 kcmil
Hex Size
5/16 in
Min. Conductor Size
6 AWG
Stud Size
5/16 in
Max. Conductor Size
600 kcmil
Length
5.83 in
Width
1.75 in
Length (Straight Wireway)
5.83 in
For Stranded Copper Wire Size - Maximum
600 kcmil
Strip Length
2 in
Overall Width
2.96 in
Overall Length
5.85 in
For Stranded Copper Wire Size - Minimum
6 AWG
Conductor Al Size Range
600 MCM-6 AWG
Conductor Cu Size Range
600 MCM-6 AWG
Hex Wrench Size
5/16
Description
Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 167 Degrees F, Maximum Voltage 600 V, Number of Ports 4, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A
