Shop All Mechanical Lugs
Blackburn

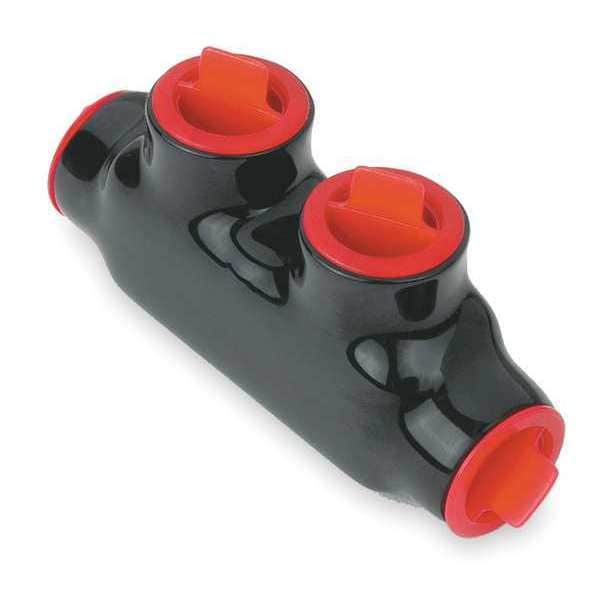

Insulated Multitap Connector, 3.50 In. L

product price: $31.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 2
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 1/0 AWG
  • Stud Size 3/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 1/0 AWG
Stud Size 3/16 in
Length 3.5 in
Width 0.88 in
Length (Straight Wireway) 3.5 in
For Stranded Copper Wire Size - Minimum 14 AWG
For Stranded Copper Wire Size - Maximum 1/0 AWG
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Hex Size 3/16 in
Overall Length 2.68 in
Overall Width 0.81 in
Outer Dimensions (inches) 7.5x6.7x4.7

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 2
Insulation Material PVC
Material Aluminum
Head Style Hex
Screw Material Aluminum
Max. Voltage 600V AC/DC
Body Material Aluminum
Standards CSA 6591, UL E9809
Direct Burial Rated No
Maximum Operating Temperature 194 Degrees F
Tap Shape T
Maximum Voltage 600 V
Color Black
Number of Ports 2
For Conductor Material Aluminum, Copper
Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
Special Features All Cable Entry are Equipped With An Anti-Oxidation Compound, Eliminates Insulation Failures, Insulated, Reduces Outage Costs, Space Efficiencies, Ultraviolet Resistant
Type AMT Connector
Standard UL E9809, CSA 6591
Temperature Rating 90 Degrees C
Voltage Rating 600V
Features PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs.; Compact design provides space efficiencies.; All cable entry are equipped with an anti-oxidation compound.

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
