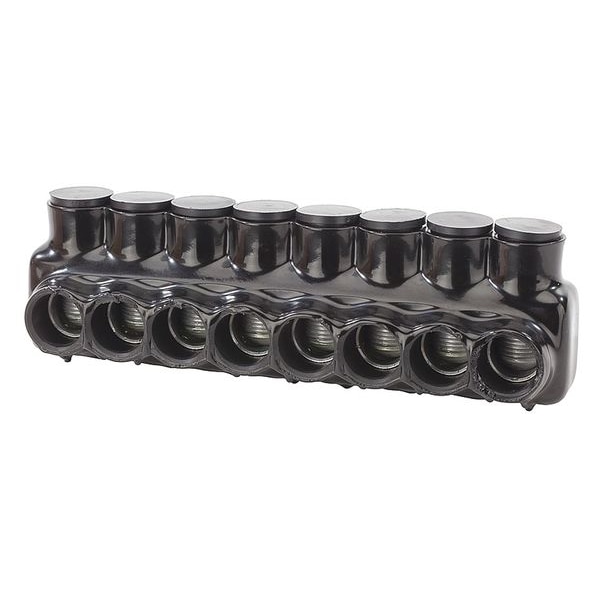

Insulated Multitap Connector, 9.82 In. L
Mfr # IPLD500-8B
Zoro # G9109852
product price: $136.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Double-Sided Entry
For Wire Size
500 kcmil
Number of Ports
8
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IPLD500-8B
Zoro #
G9109852
UPC #
662381970138
Country of Origin
United States
Dimensions
For Wire Size
500 kcmil
Hex Size
5/16 in
Max. Conductor Size
550 kcmil
Stud Size
5/16 in
Min. Conductor Size
4 AWG
Length
9.82 in
Width
2.83 in
Length (Straight Wireway)
9.82 in
Overall Length
9.82 in
Strip Length
1 3/4 in
For Stranded Copper Wire Size - Minimum
4 AWG
For Stranded Copper Wire Size - Maximum
500 kcmil
Overall Width
2.83 in
Conductor Al Size Range
500 MCM-4 AWG
Hex Wrench Size
5/16
Conductor Cu Size Range
500 MCM-4 AWG
Description
Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 8, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A
