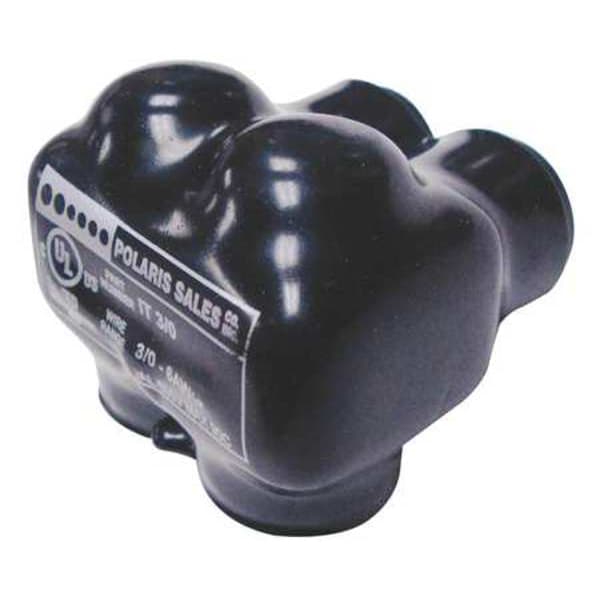

MultitapConnector, Alum, Blk, Hex, 2Port
Mfr # IT-3/0B
Zoro # G4216387
product price: $25.59
/eaKey Features
Connector Type
Single-Sided Entry
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
IT-3/0B
Zoro #
G4216387
UPC #
662381953032
Country of Origin
United States
Dimensions
Hex Size
1/4 in
Max. Conductor Size
3/0 AWG
Width
1.75 in
Min. Conductor Size
6 AWG
Stud Size
1/4 in
Length
1.84 in
Length (Straight Wireway)
1.84 in
For Stranded Copper Wire Size - Maximum
3/0 AWG
Overall Width
1.75 in
Overall Length
1.84 in
For Stranded Copper Wire Size - Minimum
6 AWG
Strip Length
1 1/8 in
Hex Wrench Size
1/4
Conductor Cu Size Range
3/0 AWG – 6 AWG
Conductor Al Size Range
3/0 AWG – 6 AWG
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 1/4 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
