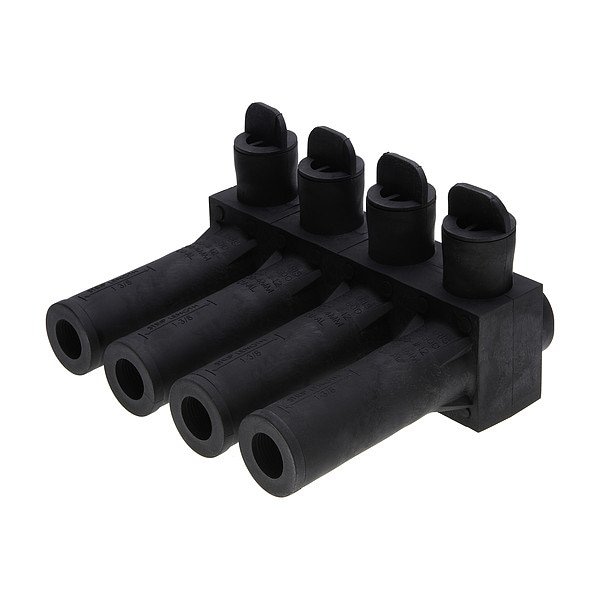

MultitapConnector, Alum, Blk, Hex, 4Port
Mfr # ISPB600-4
Zoro # G816286794
product price:Â
$
70.29
/ea
Key Features
Connector Type
Single-Sided Entry
Number of Ports
4
For Conductor Material
Copper, Aluminum
Body Material
Aluminum
Insulation Material
Rubber
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ISPB600-4
- Zoro #
- G816286794
- UPC #
- 662381789389
- Country of Origin
- United States
Dimensions
- Overall Depth
- 3 13/16 in
- Overall Width
- 5.43 in
- Wire Rope Length
- 6.56 in
- For Stranded Copper Wire Size - Maximum
- 600 kcmil
- Hex Size
- 5/16 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- Overall Length
- 6.56 in
- Length
- 6.56 in
Details
- Item
- Multitap Connectors
- Connector Type
- Single-Sided Entry
- Number of Ports
- 4
- For Conductor Material
- Copper, Aluminum
- Body Material
- Aluminum
- Insulation Material
- Rubber
- Head Style
- Hex
- Color
- Black
- Maximum Operating Temperature
- 194 deg F
- Special Features
- Pre-Filled with an Oxide Inhibitor Gel to Prevent Corrosion or Contamination
- Standards
- ANSI C119.4, C119.1
- Finish
- Rubber
- Minimum Operating Temperature
- -49 Degrees F
- Direct Burial Rated
- Yes
- Current
- 810 A
- Maximum Voltage
- 600 V
Description
Multitap Connector, Body Material Aluminum, Color Black, Finish Rubber, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Rubber, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, UL 94 Flammability Rating Not Applicable, Standards ANSI C119.4, C119.1, Connector Type Single-Sided Entry, Current 810 A
