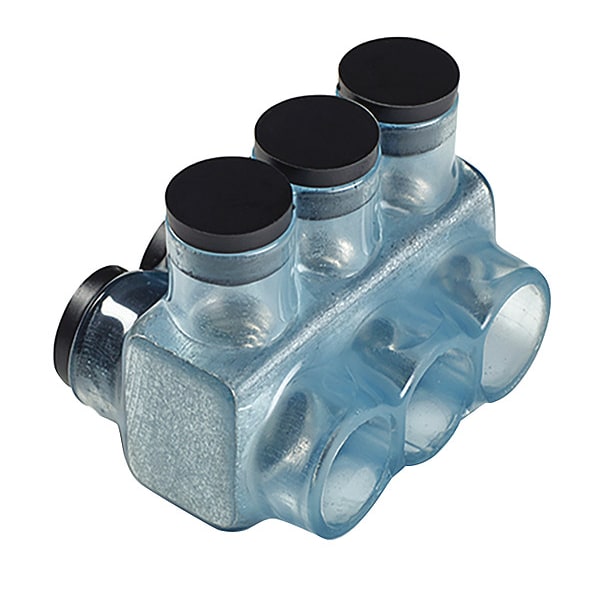

Polaris Multi-Tap Connector, 3 Port
Mfr # IPLD250-3CB
Zoro # G5805215
product price: $69.89
/eaKey Features
Connector Type
Double-Sided Entry
For Wire Size
250 kcmil
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
IPLD250-3CB
Zoro #
G5805215
UPC #
662381368867
Country of Origin
United States
Dimensions
For Wire Size
250 kcmil
Hex Size
5/16 in
Min. Single Wire Size
6 AWG
Height
2-1/4 in
Length
2.99 in
Max. Single Wire Size
250 kcmil
Overall Length
2.93 in
Width
2.31 in
Min. Conductor Size
6 AWG
Max. Conductor Size
250 kcmil
Stud Size
5/16 in
Length (Straight Wireway)
2.99 in
Overall Width
2.28 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Strip Length
1 3/8 in
For Stranded Copper Wire Size - Minimum
6 AWG
Hex Wrench Size
5/16
Conductor Al Size Range
250 MCM-6 AWG
Conductor Cu Size Range
250 MCM-6 AWG
For Minimum Wire Size - Solid
6 AWG
Minimum Single Wire Size
6 AWG
Maximum Run Wire Size
250 kcmil
Maximum Single Wire Size
250 kcmil
Maximum Wire Size
250 kcmil
Minimum Wire Size
6 AWG
Minimum Run Wire Size
6 AWG
Description
Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B, Compatible with Product Type Copper and Aluminum Conductors
