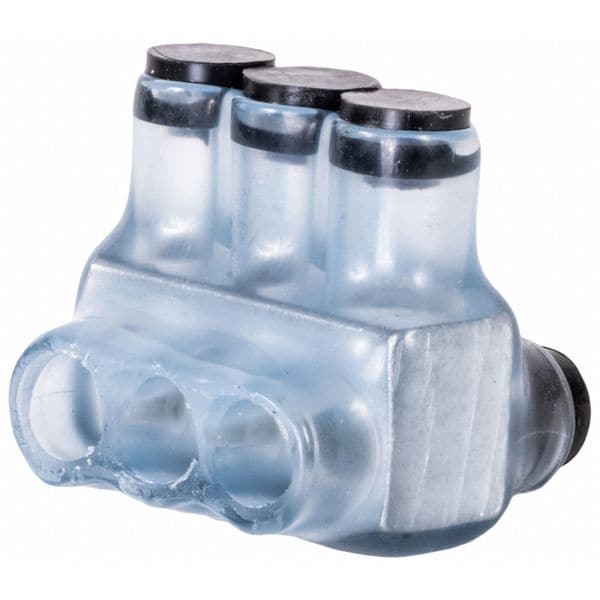

Wire Connector, 3 Port, Clear, Plastisol Insulation

  • Mfr # IPLD4-3CB

  • Zoro # G305715286

product price:
$
23.99
/ea

Key Features

Connector Type
Double-Sided Entry
For Wire Size
4 AWG
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
IPLD4-3CB
Zoro #
G305715286
UPC #
-
Country of Origin
United States
Item
Multitap Connector
Connector Type
Double-Sided Entry
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Torque
35 IN/LBS
Head Style
Hex
Finish
Plastisol
Color
Clear
Maximum Operating Temperature
194 Degrees F
Standards
UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
Application
Splice, Tap
Material
Aluminum
RoHS Compliant
Yes
Maximum Voltage
600 V
Cu Conductor Max Amp
95
Conductor Type
Copper, Aluminum
Ul Standard
UL 486A/B
Al Conductor Max Amp
75
Ul File No
E186991
Temp Rating
90C, AL9CU
Certifications
cULus
Conductors Count
3
Max Torque
35
Wire Cable Class
Class B, Class C
Env Temp
Cold Temperature rated to -45C
Assortment
Clear Coated Pre-Insulated Connectors
Maximum Conductors
3
Direct Burial Rated
No

Description

Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
