  11. Polaris Multi-Tap Connector, Insulated

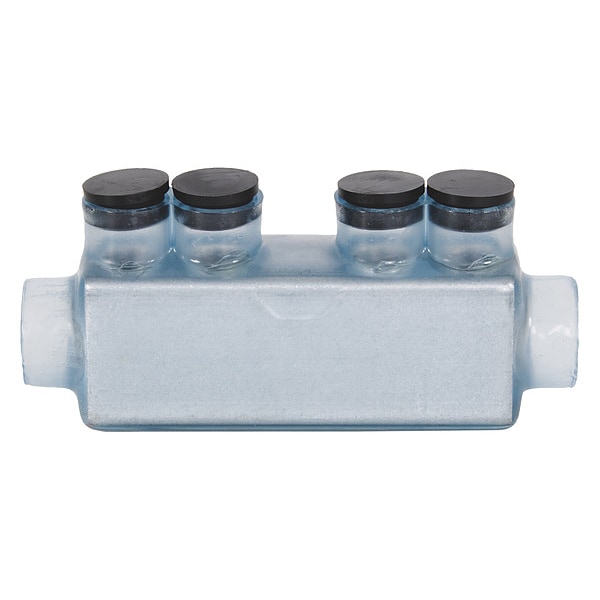

Polaris Polaris Multi-Tap Connector, Insulated ISRH-750C - main

Polaris Multi-Tap Connector, Insulated

  • Mfr # ISRH-750C

  • Zoro # G5805425

product price: $170.99
/ea
Sold in multiples of 2 for $341.98
Free Shipping & Returns

Key Features

Connector Type
In Line
For Wire Size
750 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ISRH-750C
Zoro #
G5805425
UPC #
662381996725
Country of Origin
United States

Dimensions

For Wire Size
750 kcmil
Hex Size
5/16 in
Length
7.25 in
Width
1.75 in
Overall Length
7.25 in
Max. Conductor Size
750 kcmil
Stud Size
5/16 in
Min. Conductor Size
1/0 AWG
Length (Straight Wireway)
7.25 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
For Stranded Copper Wire Size - Maximum
750 kcmil
Overall Width
1.75 in
Strip Length
2 in
Max. Single Wire Size
750 kcmil
Min. Single Wire Size
1/0 AWG
Hex Wrench Size
3/8
Conductor Cu Size Range
750 MCM – 1/0 AWG
Conductor Al Size Range
750 MCM – 1/0 AWG
Maximum Single Wire Size
750 kcmil
Maximum Run Wire Size
750 kcmil
For Maximum Wire Size - Stranded
750 kcmil
Minimum Single Wire Size
1/0 AWG
Minimum Tap Wire Size
1/0 AWG
Minimum Run Wire Size
1/0 AWG
Maximum Tap Wire Size
750 kcmil
Maximum Wire Size
750 kcmil
For Maximum Wire Size - Solid
750 kcmil
Minimum Wire Size
1/0 AWG
For Minimum Wire Size - Stranded
1/0 AWG
For Minimum Wire Size - Solid
1/0 AWG

Details

Item
Insulated Multitap Connector
Connector Type
In Line
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Direct Burial Rated
No
Torque
550 in-lb
Head Style
Hex
Finish
Plastisol
Color
Clear
Maximum Operating Temperature
194 Degrees F
Standards
cULus, UL 486A
Screw Material
Aluminum
No. of Ports
2
Maximum Voltage
600 V
Compatible with Product Type
Copper and Aluminum Conductors
Special Features
Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque
Minimum Operating Temperature
-49 Degrees F
RoHS Compliant
Yes
Application
Wire Termination; Dry Locations
Ul File No
E186991
Wire Cable Class
Class B, Class C
Al Conductor Max Amp
435
Assortment
Clear Coated Pre-Insulated Connectors
Ul Standard
UL 486A/B
Cu Conductor Max Amp
535
Max. Voltage
600V AC/DC
Max Torque
550
Conductors Count
2
Conductor Type
Copper, Aluminum
Certifications
cULus
Env Temp
Cold Temperature rated to -45C
Temp Rating
90C, AL9CU
Max. Temp.
90°C
Material
Plastisol
Type
In Line
Maximum Run Conductors
2
Current
535 A
Maximum Tap Conductors
2
Maximum Conductors
2

Description

Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 750 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A
