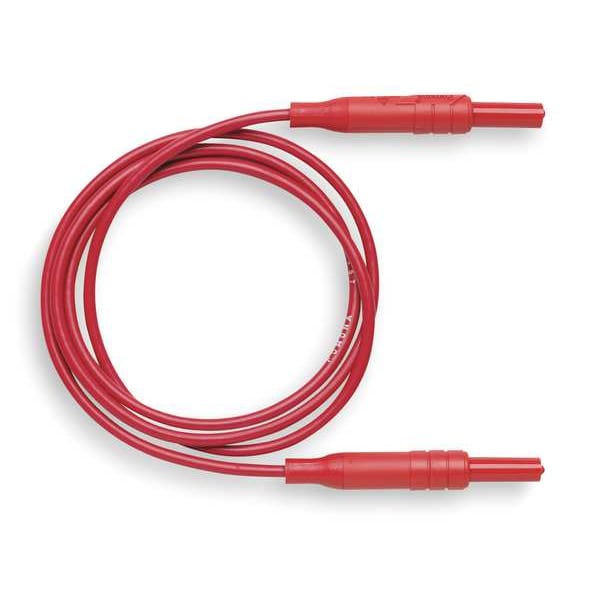

Retractable Sheath Banana Plug Patch Cord, CAT III 1000V, Banana Plug, 12", PVC, Red

  • Mfr # 4911A-60-2

  • Zoro # G0417523

product price:
$
25.75
/ea

Key Features

Instrument Safety Rating
CAT III 1000V
Plug and Connector Description
Banana Plug
Length
12"
Color
Red
Max Amps
10:00 AM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4911A-60-2
Zoro #
G0417523
UPC #
095969335454
Country of Origin
Taiwan, Province of China

Dimensions

Length
12"
Length - Test Lead
5 ft
Manufacturers Warranty Length
90 day
Wire Size
18 AWG
Meter Connection End Size
0.16 in

Details

Item
Retractable Sheath Banana Plug Patch Cord
Instrument Safety Rating
CAT III 1000V
Plug and Connector Description
Banana Plug
Color
Red
Max Amps
10:00 AM
Features
Plug and Housing are Molded Directly to the Cable in an Integral one Piece Design and the Wire is Double Crimped for a Long Lasting Connection, Multi-Leaf Banana Spring is Beryllium Copper, Nickel Plated for Extended Insertion Cycle Life and Low Contact Resistance, High Strand Count Silicone Insulated Wire Offers Excellent Flexibility and High Temperature Resistance
For Use With
Any Multimeter, Clamp Meter or Test Instrument That Accepts a Standard Shrouded Banana Plug
Wire Insulation
PVC
For Use With - Test Leads
Any Multimeter, Clamp Meter, or Test Instrument That Accepts a Standard Shrouded Banana Plug
Color Code - Test Lead
Red
Max. Amps - Test Lead
10:00 AM
Max. Voltage
1000VAC
Temp. Range
0 Degrees to 176 Degrees F
Safety Rating
CAT III 1000V
Item - Test Lead
Modular Test Leads
Max. Voltage - Test Lead
1,000
Connection - Test Lead
Straight Shrouded Plug to Straight Shrouded Plug
Max. Amps
10 A
Wire Gauge
18
Standards
IEC 1010-2-31
Number of Cords
1
Maximum Operating Temperature
131 Degrees F
Meter Connection Type
Straight Shrouded Plug
Color Code
Red
Insulation Material
Polypropylene
Maximum Voltage
1,000 V
Test End Insulation Material
Polypropylene
Number of Test Leads
1
Maximum Current
10 A
Test End Material
Stainless Steel
Compatible Manufacturer Model Number
Fluke-118, Fluke-28¿II, Fluke-289, Fluke-789, Fluke-87V
Compatible Test Instrument
Clamp Meter, Multimeter
CAT Safety Rating
CAT III 1000V
Compatible with Manufacturer Model Number
Fluke-118, Fluke-28¿II, Fluke-289, Fluke-789, Fluke-87V
For Manufacturer Part Number
Fluke-118, Fluke-28¿II, Fluke-289, Fluke-789, Fluke-87V
Compatible with Mfr. Model Number
Fluke-118, Fluke-28¿II, Fluke-289, Fluke-789, Fluke-87V
Compatible Manufacturer Part Number
Fluke-118, Fluke-28¿II, Fluke-289, Fluke-789, Fluke-87V

Description

Test Leads, Color Code Red, For Use With Any Multimeter, Clamp Meter, Test Instrument that Accepts a Standard Shrouded Banana Plug, Length 5 ft, Maximum Voltage 1,000 V, Number of Test Leads 1, Instrument Safety Rating CAT III 1000V, Maximum Current 10 A, Meter Connection Type Straight Shrouded Plug
