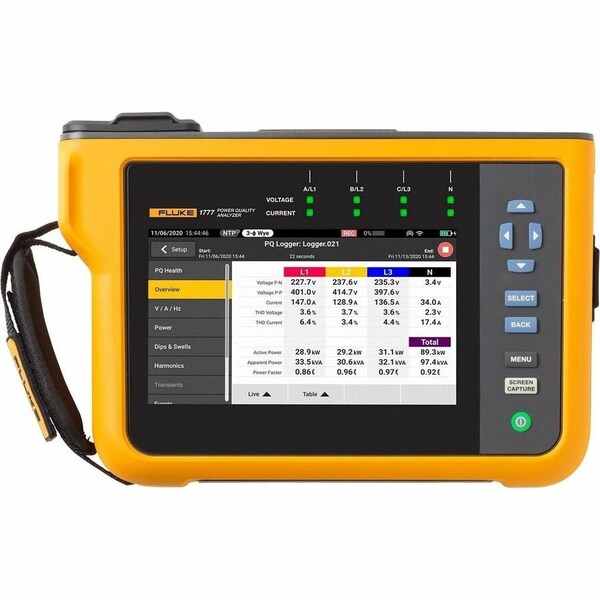

Power Quality Analyzer, 1773 Series, 3-Phase, 5 Voltage Channels, 1000V, Data Logger

  • Mfr # FLUKE-1773

  • Zoro # G403446075

product price:
$
9,389.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Phase
3
Includes
(4) AC285, Black Alligator Clip, (4) I17XX-FLEX1500 24, FLUKE-17XX IFLEX 1500 A 24 in, 2.0 M, AC285, Green Alligator Clip, Black 1 M USB-C Cable, Cable Marker Set (for Voltage and Current), FLK-17XX 0.18 M Test Lead Set, Nonstack/Stack, FLUKE-174X-MA-C8 Wall Outlet Adapter, FLUKE-17XX, Flat Cable, Voltage Test Lead 3-Phase+N, Green Test Lead, Line Cord, Statement of Calibration Practices
Kit Current Capability
6 A to 6,000 A with i17XX-FLEX6000 36
Display
Color LCD Touch Screen
Data Logging
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-1773
Zoro #
G403446075
UPC #
095969917667
Country of Origin
Romania

Dimensions

Manufacturers Warranty Length
1 yr (Accessories), 2 yr (Instrument)
Manufacturer Warranty Length
1 yr (Accessories), 2 yr (Instrument)

Details

Item
Power Quality Analyzer
Phase
3
Includes
(4) AC285, Black Alligator Clip, (4) I17XX-FLEX1500 24, FLUKE-17XX IFLEX 1500 A 24 in, 2.0 M, AC285, Green Alligator Clip, Black 1 M USB-C Cable, Cable Marker Set (for Voltage and Current), FLK-17XX 0.18 M Test Lead Set, Nonstack/Stack, FLUKE-174X-MA-C8 Wall Outlet Adapter, FLUKE-17XX, Flat Cable, Voltage Test Lead 3-Phase+N, Green Test Lead, Line Cord, Statement of Calibration Practices
Kit Current Capability
6 A to 6,000 A with i17XX-FLEX6000 36
Display
Color LCD Touch Screen
Data Logging
Yes
Voltage Accuracy
+/-0.1%
Max. DC Amps
2,000 A
Peak Capture
Yes
Voltage Channels
4
Calibration Frequency
50 to 60 Hz
Max. DC Voltage
1,000V
Harmonic Capture Range
h50
Current Accuracy
+/-1% +0.02%
Calibration Certificate
Included
Max. AC Voltage
1,000 V
Max. AC Amps
6,000 A
Safety Rating
CAT II 1000V, CAT III 600V, CAT IV 300V
Min. Transient Duration
200 mS
Storage
8 GB Internal (Expandable with MicroSD Card)
Maximum AC Current Measured
6,000 A
Harmonic Capture
50th
Display Screen Type
LCD Touchscreen
Display Type
Digital
Digital Memory Capacity
8 GB
Transient Duration
200 msec
CAT Safety Rating
CAT II 1000V, CAT III 600V, CAT IV 300V
Data Logger
Yes
Maximum AC Voltage Measured
1,000 V
Maximum Wattage
10,392 mW
Power Source
Battery, Measurement Line
Testing Functions
AC Voltage, Class A, Current, DC Voltage, Dips and Swells, Energy, Flicker, Frequency, Harmonics, Inrush Current, Interharmonics, Power, Power Factor, Total Harmonic Distortion
Data Output Type
Ethernet, Cellular, USB, Bluetooth
IP Rating
IP50
Current Channels
4
For Phase
Three
AC Magnitude Calculation
True RMS
Maximum DC Voltage Measured
1,000 V
Calibration Certificate Included
No Certification Included
Power Source - TS Only
Battery, Measurement Line
Power Source - old
Battery, Measurement Line

Description

The FLUKE-1773 is a 3-phase power quality analyzer used to measure and record electrical power parameters in AC and DC systems. It supports power quality troubleshooting and monitoring with data logging, peak capture, harmonic capture through the 50th harmonic, and measurement capability up to 1,000 V AC/DC, 6,000 A AC, and 2,000 A DC. A color LCD touchscreen and internal digital storage support on-site review and recorded data collection.

Key Features of the FLUKE-1773 Power Quality Analyzer:

  • 3-Phase Measurement: Designed for monitoring and analyzing 3-phase electrical systems.
  • Voltage and Current Range: Measures up to 1,000 V AC/DC, 6,000 A AC, and 2,000 A DC.
  • Accuracy: Voltage accuracy is +/-0.1%, and current accuracy is +/-1% +0.02%.
  • Harmonic Capture: Captures harmonics through the 50th harmonic.
  • Data Logging and Storage: Includes data logging with 8 GB internal memory, expandable with a MicroSD card.
  • Display: Color LCD touchscreen digital display for viewing readings and recorded information.
  • Voltage Channels: Includes 5 voltage channels.
  • Transient and Peak Capture: Supports peak capture and transient duration recording down to 200 msec.
  • Calibration: Calibration certificate included; calibration frequency is 50 to 60 Hz.
  • Safety Ratings: CAT II 1000V, CAT III 600V, CAT IV 300V.
  • Included Accessories: Supplied with test leads, alligator clips, flexible current probes, USB-C cable, cable marker set, wall outlet adapter, flat cable, line cord, and statement of calibration practices.
