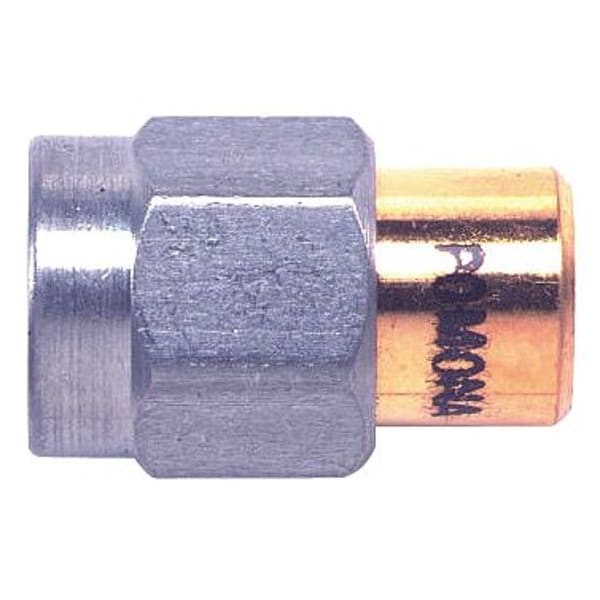

SMA Termination, 50 ohm, 335 Vrms
- Mfr # 4286
- Zoro # G7601167
product price:Â
$
85.39
/ea
Key Features
Length
0.6"
Temperature Range
85 Degrees to 329 Degrees F
Features
Gold-Plated Stainless Steel with Teflon Insulation, Resistor Terminator
Impedance
50 ohm
Operating Temp. Range
-85 Degrees to 257 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 4286
- Zoro #
- G7601167
- UPC #
- 095969172363
- Country of Origin
- China
Dimensions
- Length
- 0.6"
Details
- Item
- SMA Male Terminator Plug
- Temperature Range
- 85 Degrees to 329 Degrees F
- Features
- Gold-Plated Stainless Steel with Teflon Insulation, Resistor Terminator
- Impedance
- 50 ohm
- Operating Temp. Range
- -85 Degrees to 257 Degrees F
- Contact Material
- Beryllium Copper
- Housing Material
- Stainless Steel
- Dielectric
- Dielectric
- Frequency Range
- DC to 18 GHz
- Voltage Rating
- 335 Vrms
- Product Type
- SMA Termination
- Frequency - Minimum
- DC
- Operating Temperature - Minimum
- -85 Degrees F
- Operating Temperature - Maximum
- 257 Degrees F
- Frequency - Maximum
- 18 GHz
Description
SMA Termination, Impedance 50 ohm, Contact Material Beryllium Copper, Dielectric Dielectric, Housing Material Stainless Steel, Voltage Rating 335 Vrms, Frequency Range DC to 18 GHz, Operating Temp. Range -85 Degrees to 257 Degrees F
