This item is Discontinued.

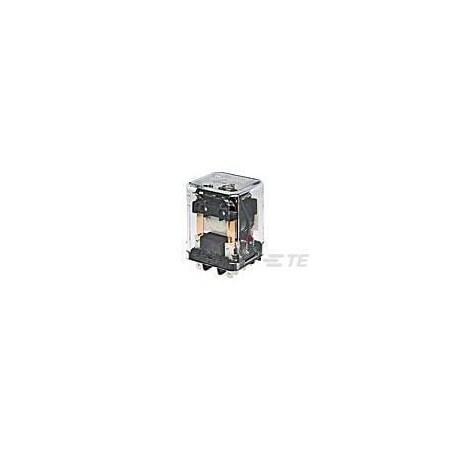

Potter-Brumfield KUEP-11D15-48=KU KUEP-11D15-48

KUEP-11D15-48=KU (Discontinued)

  • Mfr # KUEP-11D15-48
  • Zoro # G200948017
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
KUEP-11D15-48
Zoro #
G200948017
UPC #
-
Country of Origin
China

Dimensions

Length
38.9 mm [ 1.55 in ]
Width
35.7 mm [ 1.405 in ]
Height
48.4 mm [ 1.905 in ]

Details

Item
Plug-In Relay
Mounting Style
Socket
Electrical Connection
Quick Connect, Solder
Coil Voltage
48V DC
Contact Material
AgCdO
Environmental Ambient Temperature (Max)
70 °C [ 158 °F ]
Coil Power Rating Class
>1.5W
Insulation Initial Resistance (MΩ)
100000
Contact Limiting Making Current (A)
10
Environmental Category of Protection
RTI
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
2200
Contact Limiting Continuous Current (A)
10
Contact Current Class
5 to 10 A, Less Than 16A
Insulation Initial Dielectric Between Open Contacts (Vrms)
1200
Coil Resistance (Ω)
1250
Environmental Ambient Temperature Class
50 to 70°C
Contact Switching Load (Min)
300mA @ 12V
Coil Special Features
UL Coil Insulation Class B
Contact Arrangement
2 Form C (CO)
Contact Current Rating (A)
10
Relay Type
KUEP Series Panel Plug-In Relay
Contact Special Features
Magnetic Blowout
Coil Magnetic System
Monostable, DC
Contact Limiting Short-Time Current (A)
10
Contact Number of Poles
2
Insulation Initial Dielectric Between Coil/Contact Class
1500 V to 2500 VA
Contact Voltage Rating (VDC)
150
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
2200
Contact Limiting Breaking Current (A)
10
Coil Power Rating (DC) (mW)
1850
