This item is Discontinued.

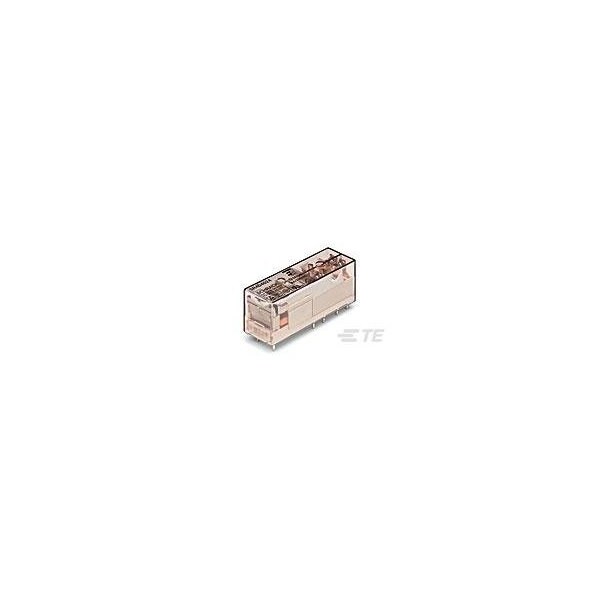

Potter-Brumfield SR4M4012 SR4M4012

SR4M4012 (Discontinued)

  • Mfr # SR4M4012
  • Zoro # G500969682
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SR4M4012
Zoro #
G500969682
UPC #
-
Country of Origin
Czechia

Dimensions

Width
13 mm [ .512 in ]
Height
16.5 mm [ .65 in ]
Length
40 mm [ 1.575 in ]
Length Class (Mechanical)
35 to 40 mm
Width Class (Mechanical)
12 to 16 mm

Details

Environmental Ambient Temperature (Max)
70 °C [ 158 °F ]
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Insulation Creepage Between Contact and Coil
10 mm [ .394 in ]
Contact Special Features
Force Guided Contacts
Mounting Type
Printed Circuit Board
Insulation Clearance Class
>8mm
Product Type
Relay
Environmental Ambient Temperature Class
-25 to 70°C
Coil Power Rating Class (mW)
800 to 1000
Contact Limiting Breaking Current (A)
8
Contact Limiting Short-Time Current (A)
8
Contact Voltage Rating (VAC)
250
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
2500
Relay Type
Force Guided Relay SR4 D/M
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Environmental Category of Protection
RTIII
Insulation Creepage Class
>8mm
Contact Limiting Continuous Current (A)
8
Coil Power Rating (DC) (mW)
800
Contact Current Rating (A)
8
Contact Limiting Making Current (A)
8
Coil Magnetic System
Monostable, DC
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Terminal Type
PCB-THT
Coil Current
66.67
Contact Material
AgSnO2
Contact Switching Load (Min)
10mA @ 5V
Contact Arrangement
3 Form A (NO) + 1 Form B (NC)
Contact Current Class
5 to 10 A
Coil Resistance (Ω)
180
Insulation Clearance Between Contact and Coil
10 mm [ .394 in ]
Contact Switching Voltage (Max) (VAC)
400
Contact Number of Poles
4
Coil Voltage Rating (VDC)
12
