  7. T9AP5D52-12

This item is Discontinued.

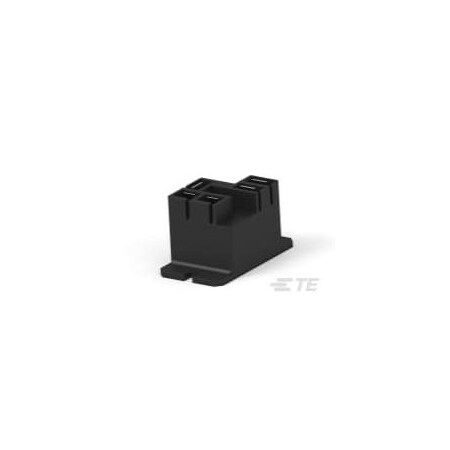

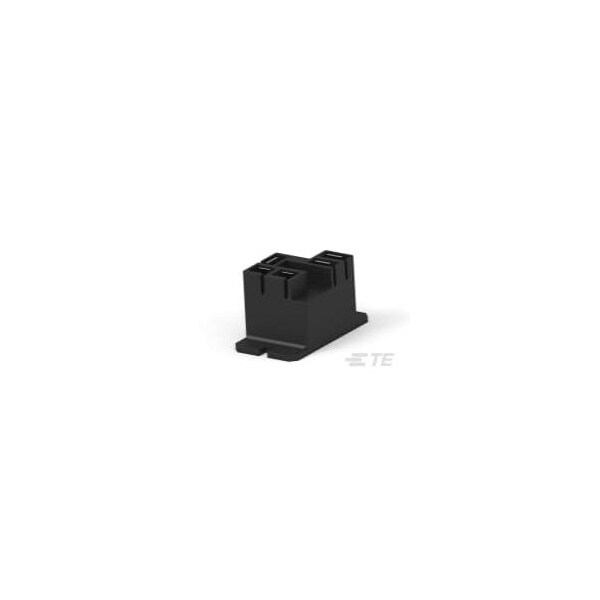

Potter-Brumfield T9AP5D52-12 T9AP5D52-12

T9AP5D52-12 (Discontinued)

  • Mfr # T9AP5D52-12
  • Zoro # G900969428
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T9AP5D52-12
Zoro #
G900969428
UPC #
-
Country of Origin
China

Dimensions

Width
27.4 mm [ 1.079 in ]
Length
32.5 mm [ 1.281 in ]
Height
27.9 mm [ 1.098 in ]

Details

Item
PCB Relay
Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Quick Connect
Coil Voltage
12V DC
Contact Material
AgCdO
Contact Limiting Breaking Current (A)
20
Coil Power Rating (DC) (mW)
1000
Insulation Initial Resistance (MΩ)
1000000
Contact Current Rating (A)
20
Contact Arrangement
1 Form C (CO)
Insulation Special Features
6000V Initial Surge Withstand Voltage between Contacts and Coil
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Contact Limiting Continuous Current (A)
20
Contact Voltage Rating (VAC)
277
Insulation Creepage Between Contact and Coil
6.36 mm [ .25 in ]
Contact Switching Load (Min)
1000mA @ 5V
Contact Number of Poles
1
Contact Limiting Short-Time Current (A)
20
Coil Magnetic System
Monostable, DC
Insulation Creepage Class
5.5 to 8mm
Relay Type
T9A Series DC Coil 30A PCB
Coil Resistance (Ω)
144
Coil Power Rating Class
800 to 1000 mW
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
2500
Insulation Clearance Between Contact and Coil
3.18 mm [ .125 in ]
Environmental Ambient Temperature Class
70 to 85°C
Contact Current Class
10 to 20 A, Greater Than 16A
Coil Special Features
UL Coil Insulation Class F
Insulation Clearance Class
2.5 to 4mm
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Contact Limiting Making Current (A)
20
Insulation Initial Dielectric Between Coil/Contact Class
1500 V to 2500 VA
Contact Switching Voltage (Max) (VAC)
277
Environmental Category of Protection
RTI
