  7. T9AS1L12-24

This item is Discontinued.

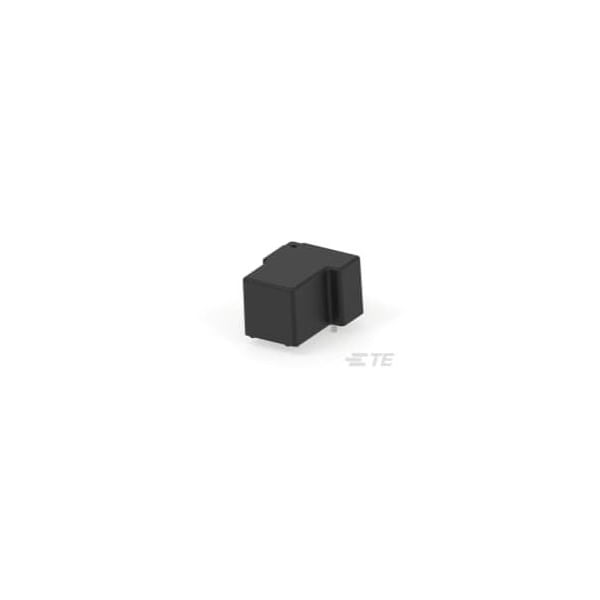

Potter-Brumfield T9AS1L12-24 T9AS1L12-24

T9AS1L12-24 (Discontinued)

  • Mfr # T9AS1L12-24
  • Zoro # G800969559
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T9AS1L12-24
Zoro #
G800969559
UPC #
-
Country of Origin
China

Dimensions

Width
27.4 mm [ 1.079 in ]
Length
32.5 mm [ 1.281 in ]
Height
20.4 mm [ .803 in ]

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
24V DC
Contact Material
AgCdO
Environmental Category of Protection
RTIII
Contact Current Rating (A)
30
Insulation Initial Resistance (MΩ)
1000
Insulation Creepage Between Contact and Coil
6.36 mm [ .25 in ]
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Insulation Clearance Class
2.5 to 4mm
Coil Resistance (Ω)
660
Contact Limiting Making Current (A)
30
Insulation Creepage Class
5.5 to 8mm
Insulation Special Features
6000V Initial Surge Withstand Voltage between Contacts & Coil
Contact Switching Load (Min)
1000mA @ 5V
Coil Special Features
UL Coil Insulation Class F
Coil Power Rating Class
800 to 1000 mW
Insulation Clearance Between Contact and Coil
3.18 mm [ .125 in ]
Contact Current Class
20 to 30 A, Greater Than 16A
Contact Limiting Short-Time Current (A)
30
Contact Number of Poles
1
Coil Power Rating (DC) (mW)
900
Contact Limiting Breaking Current (A)
30
Contact Voltage Rating (VAC)
277
Contact Limiting Continuous Current (A)
30
Contact Arrangement
1 Form A (NO)
Environmental Ambient Temperature Class
70 to 85°C
Insulation Initial Dielectric Between Coil/Contact Class
1500 V to 2500 VA
Contact Switching Voltage (Max) (VAC)
277
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Coil Magnetic System
Monostable, DC
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
2500
