  7. T9AS5D12-5

This item is Discontinued.

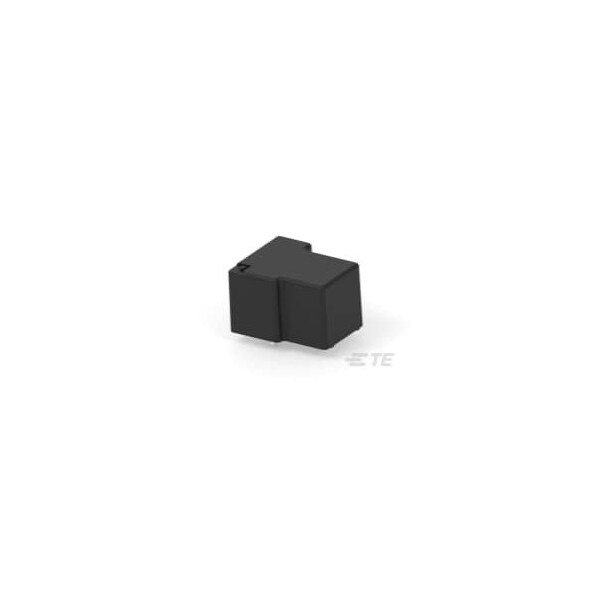

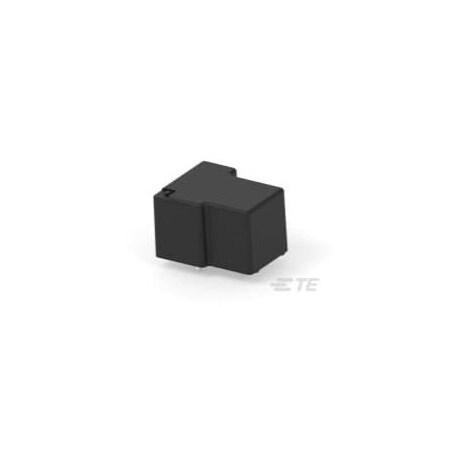

Potter-Brumfield T9AS5D12-5 T9AS5D12-5

T9AS5D12-5 (Discontinued)

  • Mfr # T9AS5D12-5
  • Zoro # G700969529
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T9AS5D12-5
Zoro #
G700969529
UPC #
-
Country of Origin
China

Dimensions

Width
27.4 mm [ 1.079 in ]
Length
32.5 mm [ 1.281 in ]
Height
20.4 mm [ .803 in ]

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
5V DC
Contact Material
AgCdO
Contact Limiting Short-Time Current (A)
20
Contact Number of Poles
1
Insulation Special Features
6000V Initial Surge Withstand Voltage between Contacts & Coil
Contact Limiting Making Current (A)
20
Contact Switching Voltage (Max) (VAC)
277
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Insulation Clearance Between Contact and Coil
3.18 mm [ .125 in ]
Environmental Category of Protection
RTIII
Coil Resistance (Ω)
25
Environmental Ambient Temperature Class
70 to 85°C
Insulation Initial Dielectric Between Coil/Contact Class
1500 V to 2500 VA
Insulation Clearance Class
2.5 to 4mm
Contact Limiting Continuous Current (A)
20
Contact Arrangement
1 Form C (CO)
Coil Special Features
UL Coil Insulation Class F
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
2500
Insulation Creepage Class
5.5 to 8mm
Insulation Creepage Between Contact and Coil
6.36 mm [ .25 in ]
Contact Current Class
10 to 20 A, Greater Than 16A
Contact Switching Load (Min)
1000mA @ 5V
Insulation Initial Resistance (MΩ)
1000
Contact Limiting Breaking Current (A)
20
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Contact Voltage Rating (VAC)
277
Coil Magnetic System
Monostable, DC
Coil Power Rating (DC) (mW)
1000
Coil Power Rating Class
800 to 1000 mW
Contact Current Rating (A)
20
