  11. Butt Splice Wire Connector, 10 AWG Max, Yellow, Heat Shrink Insulation, 600 V, 50 PK
This item is Discontinued.

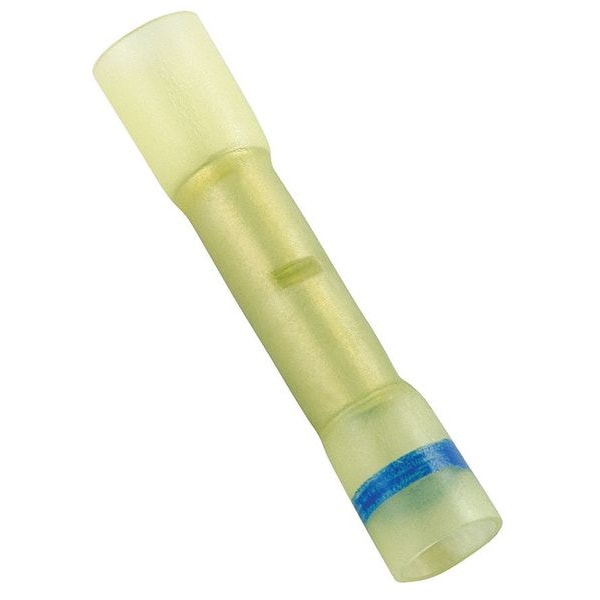

Power First Butt Splice Wire Connector, 10 AWG Max, Yellow, Heat Shrink Insulation, 600 V, 50 PK 5UGV2

Butt Splice Wire Connector, 10 AWG Max, Yellow, Heat Shrink Insulation, 600 V, 50 PK (Discontinued)

  • Mfr # 5UGV2
  • Zoro # G1945097
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UGV2
Zoro #
G1945097
UPC #
190735599709
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
16 AWG
Barrel Inside Dia.
0.091 in
Overall Length
1.61 in
For Maximum Wire Insulation Diameter
0.064 in
Barrel Inside Diameter
0.134 in
Strip Length
1/4 in
For Minimum Wire Size - Solid
16 AWG
For Maximum Wire Size - Solid
10 AWG

Details

Item
Butt Splice Wire Connector
Type
Butt Splice
Color
Yellow
Insulation Material
Heat Shrink
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
HB
RoHS Compliant
Yes
Standards
UL/cUL Listed
Material
Copper
Compatible with Product Type
Insulated Stranded Copper Cable
Number of Splices
1
Termination Style
Crimp
Seam Style
Seamless
Special Features
Changing Down, Water-Resistant
Maximum Conductors
2
For Wire Type
Solid, Stranded
Compatible Installation Tool Model Number
24C968
Finish
Tin Plated

Description

Splice Connector, Connection Type Crimp, Insulation Color Yellow, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 10 AWG, Standards UL/cUL Listed, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, Overall Length 1.61 in, RoHS Compliant Yes, Seam Style Seamless, Barrel Inside Diameter 0.134 in, Body Finish Tin Plated, Body Material Copper
