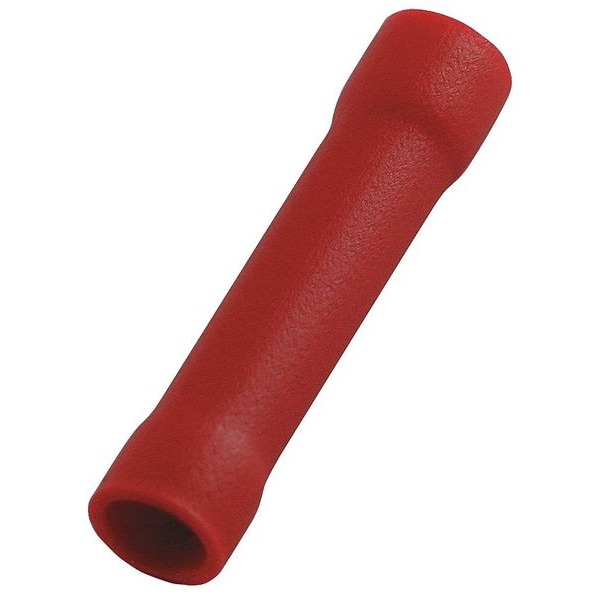

Butt Splice Wire Connector, 16 AWG Max, Red, Vinyl Insulation, 600 V, 100 PK (Discontinued)
- Mfr # 4FRH9
- Zoro # G3209306
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
4FRH9
Zoro #
G3209306
UPC #
190735597569
Country of Origin
Taiwan, Province of China
Dimensions
Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Overall Length
0.97 in
Barrel Inside Dia.
0.067 in
For Maximum Wire Insulation Diameter
0.051 in
Barrel Inside Diameter
0.067 in
Strip Length
1/4 in
Barrel Outside Diameter
0.157 in
For Maximum Wire Size - Solid
16 AWG
For Minimum Wire Size - Solid
22 AWG
Description
Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Red, Maximum Operating Temperature 167 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Standards UL/cUL Listed, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Overall Length 0.97 in, RoHS Compliant Yes, Seam Style Butted, Barrel Inside Diameter 0.067 in, Barrel Outside Diameter 0.157 in, Body Finish Tin Plated
