  11. Butt Splice Wire Connector, 8 AWG Max, Red, Heat Shrink Insulation, 600 V, 25 PK
This item is Discontinued.

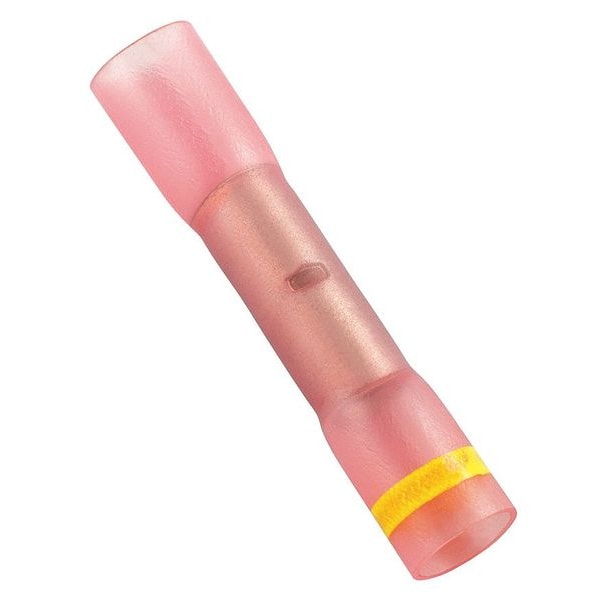

Power First Butt Splice Wire Connector, 8 AWG Max, Red, Heat Shrink Insulation, 600 V, 25 PK 5UGV3

Butt Splice Wire Connector, 8 AWG Max, Red, Heat Shrink Insulation, 600 V, 25 PK (Discontinued)

  • Mfr # 5UGV3
  • Zoro # G3111656
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UGV3
Zoro #
G3111656
UPC #
190735599716
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Barrel Inside Dia.
0.138 in 0.181 in
Overall Length
1.91 in
Strip Length
3/8 in
For Maximum Wire Insulation Diameter
0.129 in
Barrel Inside Diameter
0.177 in
For Minimum Wire Size - Solid
12 AWG
For Maximum Wire Size - Solid
8 AWG

Details

Item
Butt Splice Wire Connector
Type
Butt Splice
Color
Red
Insulation Material
Heat Shrink
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
HB
RoHS Compliant
Yes
Standards
UL/cUL Listed
Material
Copper
Termination Style
Crimp
Number of Splices
1
Seam Style
Seamless
Compatible with Product Type
Insulated Stranded Copper Cable
Maximum Conductors
2
For Wire Type
Solid, Stranded
Special Features
Changing Down, Water-Resistant
Compatible Installation Tool Model Number
24C968
Finish
Tin Plated

Description

Splice Connector, Connection Type Crimp, Insulation Color Red, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 8 AWG, Standards UL/cUL Listed, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, Overall Length 1.91 in, RoHS Compliant Yes, Seam Style Seamless, Barrel Inside Diameter 0.177 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number 24C968
