Contact our U.S. based teamSpecifications
Product Information
MFR #
24C770
Zoro #
G6151293
UPC #
190735589151
Country of Origin
Taiwan, Province of China
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.846 in
Barrel Inside Dia.
0.197 in
Strip Length
1/4 in
Tab Thickness
0.032 in
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Barrel Size
Standard
Barrel Outside Diameter
0.197 in
Tab Width
0.25 in
Barrel Inside Diameter
0.091 in
Description

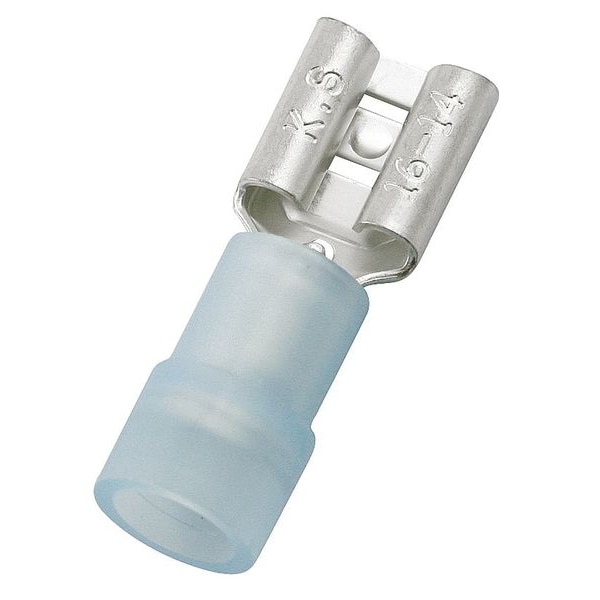

Female Disconnect with Copper Sleeve, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
