Power First

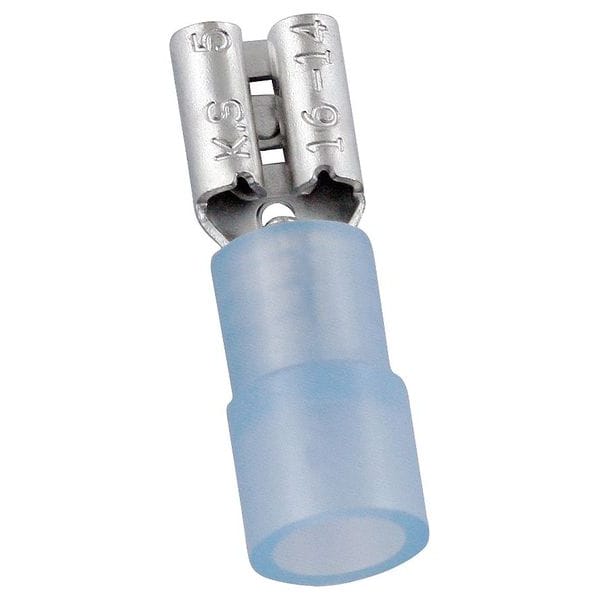

Female Disconnect, Blue, 16-14AWG, PK100

product price: $12.25
/pk 100, $0.12/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Insulation Color Blue
  • Insulation Type Nylon
  • Connection Type Crimp
  • Wire Range 16 to 14 AWG
See all product information

Product Information

Dimensions

Overall Length 0.787 in
Tab Size 0.020 in x 0.187 in
Barrel Inside Dia. 0.091 in
Maximum Wire Size 14 AWG
For Wire Size 14 AWG, 16 AWG
Tab Width 0.187 in
Barrel Size Standard
Minimum Wire Size 16 AWG
Strip Length 1/4 in
Barrel Inside Diameter 0.091 in
Barrel Outside Diameter 0.177 in

Details

Item Female Disconnect
Insulation Partial
Insulation Color Blue
Insulation Type Nylon
Connection Type Crimp
Wire Range 16 to 14 AWG
Seam Butted
Max. Voltage 300 V
Max. Temp. 221 Degrees F
Standards UL/cUL Listed
Connection Material Brass
Terminal Types Female Socket
Seam Style Butted
Tab Thickness 0.02 in
Termination Style Crimp
Maximum Operating Temperature 221 Degrees F
Insulation Material Nylon
Terminal Type Socket
Barrel Style Crimp
Disconnect Style Tab
UL 94 Flammability Rating V-2
Contact Finish Tin
Insulation Coverage Partial Coverage
RoHS Compliant Yes
Current 15 A
Maximum Voltage 300 V
Connection Orientation Straight
Contact Material Brass

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 300 V, Tab Thickness 0.02 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
