Product Information
MFR #
24C741
Zoro #
G8490912
UPC #
190735588888
Country of Origin
Taiwan, Province of China
Dimensions
Overall Length
0.772 in
Tab Size
0.032 in x 0.110 in
Barrel Inside Dia.
0.157 in
Barrel Size
Standard
Maximum Wire Size
16 AWG
Tab Thickness
0.032 in
Strip Length
1/4 in
Barrel Inside Diameter
0.067 in
Barrel Outside Diameter
0.157 in
Tab Width
0.11 in
Minimum Wire Size
22 AWG
Description

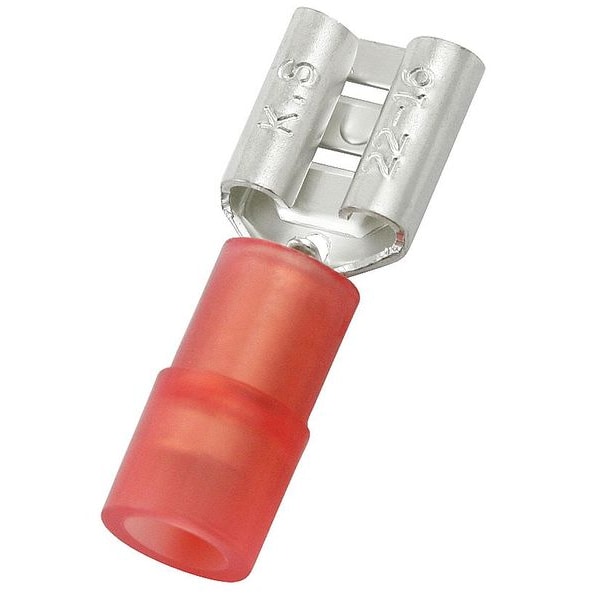

Female Disconnect with Copper Sleeve, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.11 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
