Contact our U.S. based teamSpecifications
Product Information
MFR #
24C783
Zoro #
G6201246
UPC #
190735589267
Country of Origin
Taiwan, Province of China
Dimensions
Overall Length
0.795 in
Tab Size
0.032 in x 0.187 in
Barrel Inside Dia.
0.157 in
Tab Width
0.187 in
Strip Length
1/4 in
Tab Thickness
0.032 in
Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Barrel Outside Diameter
0.157 in
Barrel Size
Standard
Barrel Inside Diameter
0.067 in
Description

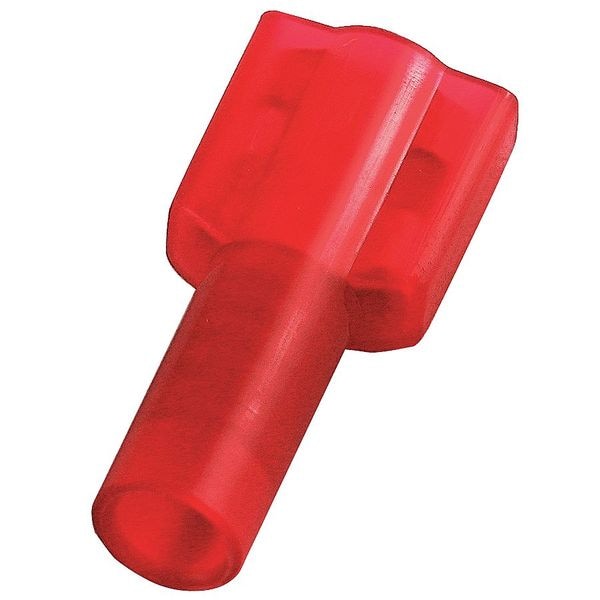

Female Disconnect with Copper Sleeve, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
