Power First

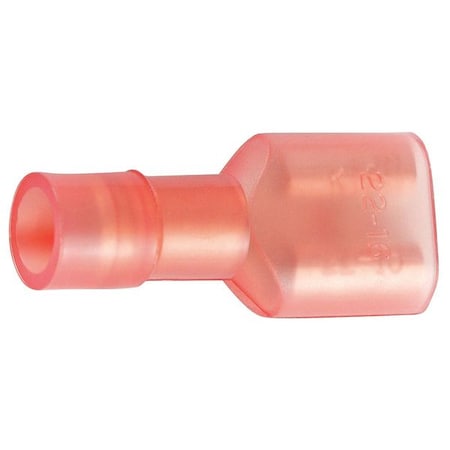

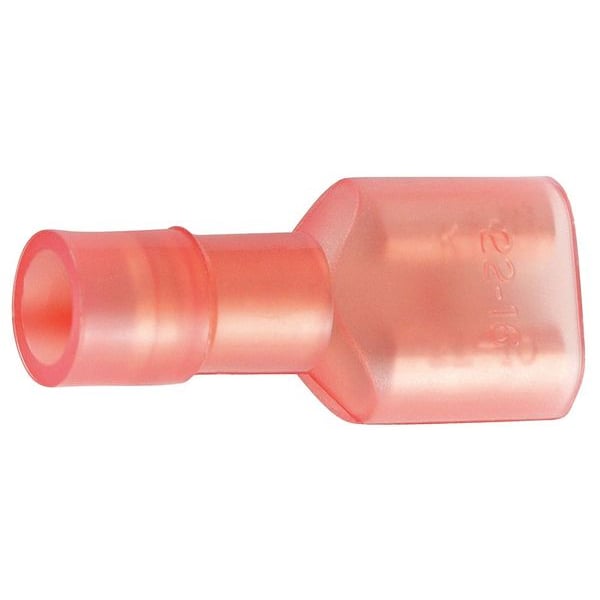

Female Disconnect, Red, 22-16AWG, PK100

product price: $28.99
/pk 100, $0.29/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Red
  • Insulation Type Nylon
  • Connection Type Crimp
  • Wire Range 22 to 16 AWG
See all product information

Product Information

Dimensions

Tab Size 0.020 in x 0.110 in
Overall Length 0.768 in
Barrel Inside Dia. 0.157 in
Strip Length 1/4 in
For Wire Size 16 AWG, 18 AWG, 20 AWG, 22 AWG
Tab Width 0.11 in
Barrel Outside Diameter 0.157 in
Barrel Size Standard
Minimum Wire Size 22 AWG
Maximum Wire Size 16 AWG
Barrel Inside Diameter 0.067 in

Details

Item Female Disconnect with Copper Sleeve
Insulation Full
Insulation Color Red
Insulation Type Nylon
Connection Type Crimp
Wire Range 22 to 16 AWG
Seam Butted
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Connection Material Tin-Plated Brass
Standards UL/cUL Listed
UL 94 Flammability Rating V-2
Current 10 A
Insulation Material Nylon
Disconnect Style Tab
Seam Style Butted
Barrel Style Crimp
Tab Thickness 0.02 in
Termination Style Crimp
Connection Orientation Straight
RoHS Compliant Yes
Insulation Coverage Full Coverage
Terminal Types Female Socket
Contact Material Brass
Contact Finish Tin
Maximum Voltage 600 V
Maximum Operating Temperature 221 Degrees F
Terminal Type Socket

Description

Female Disconnect with Copper Sleeve, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.11 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
