Contact our U.S. based teamSpecifications
Product Information
MFR #
24C880
Zoro #
G5515221
UPC #
190735590119
Country of Origin
Taiwan, Province of China
Dimensions
Tab Size
0.020 in x 0.187 in
Overall Length
0.807 in
Barrel Inside Dia.
0.15 in
Tab Width
0.187 in
Barrel Outside Diameter
0.157 in
Maximum Wire Size
16 AWG
Barrel Inside Diameter
0.067 in
Strip Length
1/4 in
Minimum Wire Size
22 AWG
Barrel Size
Standard
Tab Thickness
0.02 in
Description

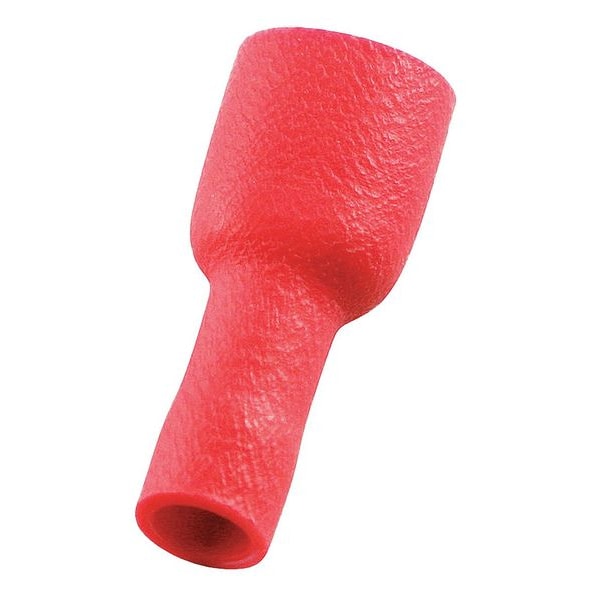

Female Disconnect with Copper Sleeve, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
