Shop All Wire Disconnects
Power First

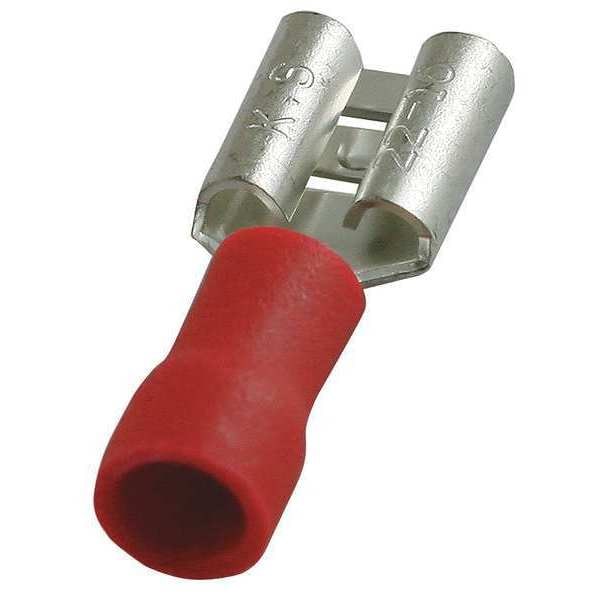

Female Disconnect, Red, 22-16AWG, PK100

product price: $17.75
/pk 100, $0.18/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Insulation Color Red
  • Connection Type Crimp
  • Insulation Type Vinyl
  • Wire Range 22 to 16 AWG
See all product information

Product Information

Dimensions

Overall Length 0.807 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.067 in
Minimum Wire Size 22 AWG
For Wire Size 16 AWG, 18 AWG, 20 AWG, 22 AWG
Barrel Outside Diameter 0.157 in
Tab Width 0.25 in
Strip Length 1/4 in
Maximum Wire Size 16 AWG
Barrel Inside Diameter 0.067 in
Barrel Size Standard

Details

Item Female Disconnect
Insulation Partial
Insulation Color Red
Connection Type Crimp
Insulation Type Vinyl
Wire Range 22 to 16 AWG
Seam Butted
Max. Temp. 167 Degrees F
Max. Voltage 300 V
Standards UL/cUL Listed
Connection Material Brass
Barrel Style Crimp
Maximum Voltage 300 V
Contact Material Brass
RoHS Compliant Yes
UL 94 Flammability Rating V-0
Current 10 A
Maximum Operating Temperature 167 Degrees F
Disconnect Style Tab
Contact Finish Tin
Tab Thickness 0.032 in
Seam Style Butted
Terminal Types Female Socket
Insulation Coverage Partial Coverage
Connection Orientation Straight
Insulation Material Vinyl
Termination Style Crimp
Terminal Type Socket

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 167 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 300 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
