Shop All Wire Disconnects
Power First

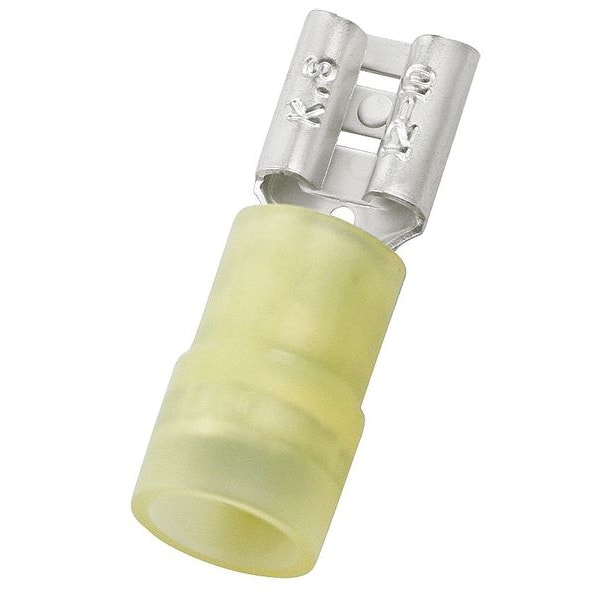

Female Disconnect, Yellow, 12-10AWG, PK50

product price: $19.35
/pk 50, $0.39/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Insulation Color Yellow
  • Insulation Type Nylon
  • Wire Range 12 to 10 AWG
  • Connection Type Crimp
See all product information

Product Information

Dimensions

Overall Length 0.866 in
Tab Size 0.020 in x 0.110 in
Barrel Inside Dia. 0.256 in
Tab Width 0.11 in
Minimum Wire Size 12 AWG
Barrel Size Standard
Maximum Wire Size 10 AWG
Barrel Inside Diameter 0.134 in
For Wire Size 10 AWG, 12 AWG
Barrel Outside Diameter 0.256 in

Details

Item Female Disconnect with Copper Sleeve
Insulation Partial
Insulation Color Yellow
Insulation Type Nylon
Wire Range 12 to 10 AWG
Connection Type Crimp
Seam Butted
Max. Voltage 600 V
Max. Temp. 221 Degrees F
Connection Material Tin-Plated Brass
Insulation Material Nylon
UL 94 Flammability Rating V-2
Disconnect Style Tab
Terminal Types Female Socket
Terminal Type Socket
Termination Style Crimp
Barrel Style Crimp
RoHS Compliant Yes
Insulation Coverage Partial Coverage
Seam Style Butted
Connection Orientation Straight
Maximum Voltage 600 V
Tab Thickness 0.02 in
Contact Finish Tin
Maximum Operating Temperature 221 Degrees F
Current 24 A
Contact Material Brass

Description

Female Disconnect with Copper Sleeve, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.11 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards Not Applicable
