Power First

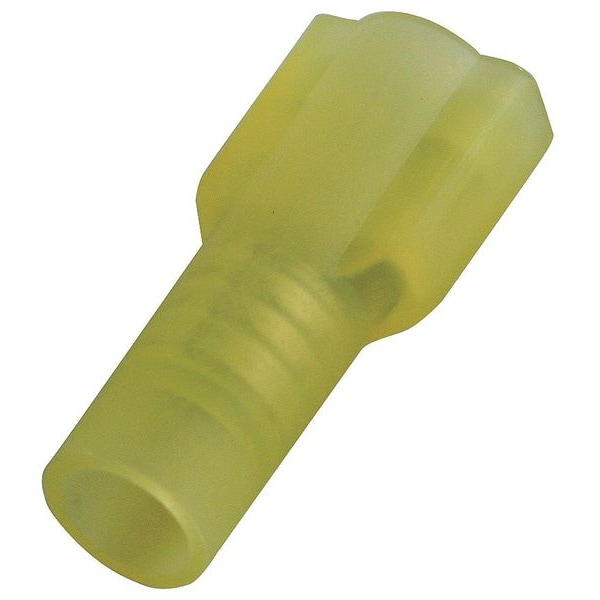

Female Disconnect, Yellow, 12-10AWG, PK50

product price: $18.29
/pk 50, $0.37/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Full
  • Insulation Color Yellow
  • Connection Type Crimp
  • Wire Range 12 to 10 AWG
  • Insulation Type Nylon
See all product information

Product Information

Dimensions

Overall Length 0.906 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.134 in
Tab Width 0.25 in
Barrel Size Standard
Maximum Wire Size 10 AWG
Barrel Inside Diameter 0.138 in
Minimum Wire Size 12 AWG
Strip Length 3/8 in
For Wire Size 10 AWG, 12 AWG
Barrel Outside Diameter 0.217 in

Details

Item Female Disconnect
Insulation Full
Insulation Color Yellow
Connection Type Crimp
Wire Range 12 to 10 AWG
Insulation Type Nylon
Seam Butted
Max. Voltage 300 V
Max. Temp. 221 Degrees F
Connection Material Brass
Standards UL/cUL Listed
Maximum Operating Temperature 221 Degrees F
Insulation Coverage Full Coverage
Terminal Type Socket
Maximum Voltage 300 V
Tab Thickness 0.032 in
UL 94 Flammability Rating V-2
Contact Finish Tin
Termination Style Crimp
Disconnect Style Tab
Insulation Material Nylon
Connection Orientation Straight
Seam Style Butted
Current 24 A
Terminal Types Female Socket
RoHS Compliant Yes
Barrel Style Crimp
Contact Material Brass

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 300 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
