Power First

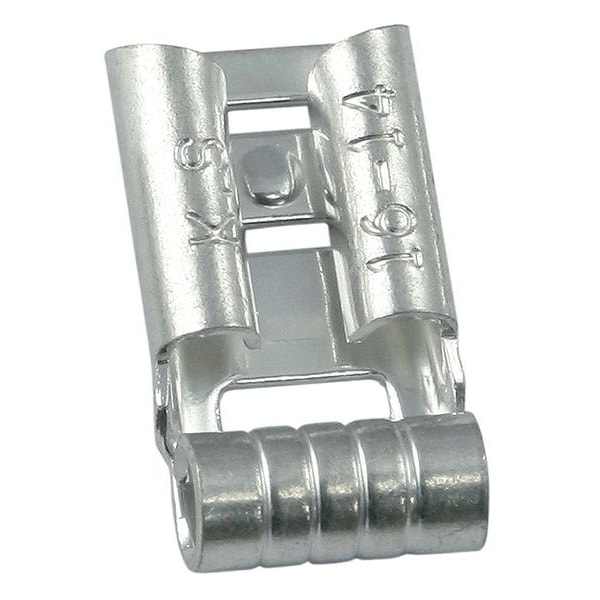

Female Flag Disconct, Bare, 16-14AWG, PK100

product price: $10.45
/pk 100, $0.10/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation None
  • Insulation Color Bare
  • Wire Range 16 to 14 AWG
  • Insulation Type Non-Insulated
  • Connection Type Crimp
See all product information

Product Information

Dimensions

Overall Length 0.551 in
Tab Size 0.032 in x 0.250 in
Barrel Inside Dia. 0.087 in
Barrel Inside Diameter 0.087 in
Strip Length 3/8 in
Barrel Size Standard
For Wire Size 14 AWG, 16 AWG
Maximum Wire Size 14 AWG
Tab Width 0.25 in
Minimum Wire Size 16 AWG

Details

Item Female Flag Disconnect
Insulation None
Insulation Color Bare
Wire Range 16 to 14 AWG
Insulation Type Non-Insulated
Connection Type Crimp
Seam Butted
Max. Voltage 600 V
Max. Temp. 221 Degrees F
Connection Material Brass
Standards UL/cUL Listed
Maximum Voltage 600 V
Connection Orientation 90 Degrees Angled
Maximum Operating Temperature 221 Degrees F
Seam Style Butted
Minimum Operating Temperature 221 Degrees F
Insulation Material None
Insulation Coverage None
Contact Material Brass
Tab Thickness 0.032 in
Barrel Style Crimp
Terminal Types Female Socket
Terminal Type Socket
Contact Finish Tin
Termination Style Crimp
RoHS Compliant Yes
Disconnect Style Tab
Current 15 A

Description

Female Flag Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed, Barrel Inside Diameter 0.087 in, Barrel Size Standard
