Power First

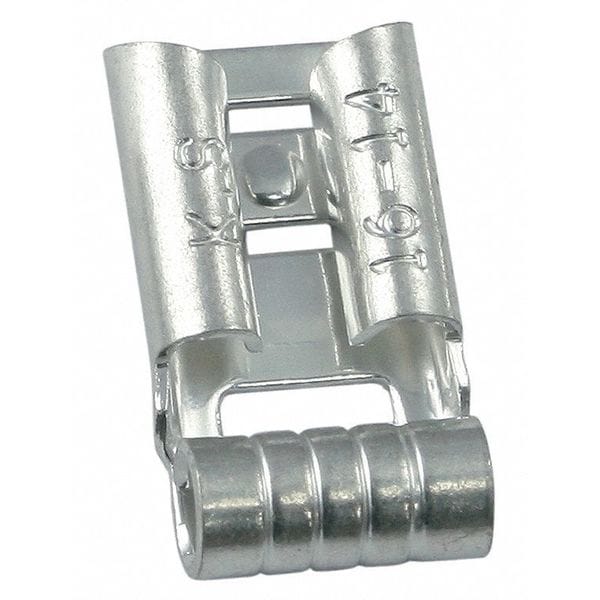

Female Flag Disconct, Bare, 16-14AWG, PK100

product price: $9.29
/pk 100, $0.09/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation None
  • Insulation Color Bare
  • Wire Range 16 to 14 AWG
  • Insulation Type Non-Insulated
  • Connection Type Crimp
See all product information

Product Information

Dimensions

Tab Size 0.020 in x 0.187 in
Overall Length 0.457 in
Barrel Inside Dia. 0.067 in
Minimum Wire Size 16 AWG
Barrel Inside Diameter 0.067 in
Maximum Wire Size 14 AWG
For Wire Size 14 AWG, 16 AWG
Barrel Size Standard
Tab Width 0.187 in

Details

Item Female Flag Disconnect
Insulation None
Insulation Color Bare
Wire Range 16 to 14 AWG
Insulation Type Non-Insulated
Connection Type Crimp
Seam Butted
Max. Voltage 600 V
Max. Temp. 221 Degrees F
Connection Material Brass
Terminal Type Socket
RoHS Compliant Yes
Contact Material Brass
Insulation Material None
Maximum Voltage 600 V
Current 15 A
Tab Thickness 0.02 in
Terminal Types Female Socket
Minimum Operating Temperature 221 Degrees F
Termination Style Crimp
Contact Finish Tin
Connection Orientation 90 Degrees Angled
Disconnect Style Tab
Maximum Operating Temperature 221 Degrees F
Seam Style Butted
Insulation Coverage None
Barrel Style Crimp

Description

Female Flag Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards Not Applicable, Barrel Inside Diameter 0.067 in, Barrel Size Standard
