  11. Fork Terminal, #10 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 100 PK

This item is Discontinued.

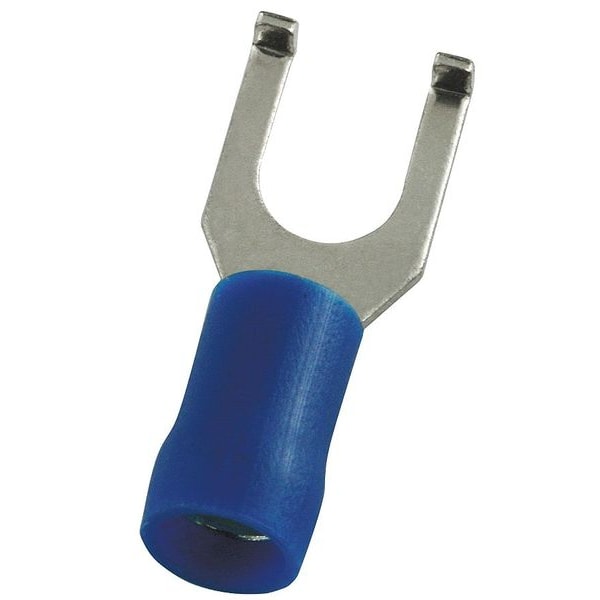

Power First Fork Terminal, #10 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 100 PK 4FRJ4

Fork Terminal, #10 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 100 PK (Discontinued)

  • Mfr # 4FRJ4
  • Zoro # G0708915
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FRJ4
Zoro #
G0708915
UPC #
190735597606
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#10
Overall Length
0.925 in
Tongue Width - Wire Connector
0.34 in
Tongue Thickness
0.031 in
Tongue Length
1 in
Barrel Length
0.413 in
Strip Length
1/4 in
Tongue Width
0.335 in

Details

Item
Fork Terminal
Terminal Shape
Flanged Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Insulation Coverage
Partial Coverage
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
UL/cUL Listed E96029
Connection Type
Crimp
Terminal Connection
Crimp
Terminal Type
Flanged
Max. Temp.
221 Degrees F
Connection Material
Copper
Wire Range
16 to 14 AWG
Seam
Butted
Barrel Style
Extra Copper Sleeve on Barrel
RoHS Compliant
Yes
Compatible with Product Type
Insulated Stranded Copper Cable
UL 94 Flammability Rating
V-0
Special Features
Extra Copper Sleeve on Barrel
Contact Finish
Tin
Seam Style
Butted
Insulation Material
Vinyl

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #10, Termination Style Crimp, Tongue Length 0.512 in, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed E96029, Barrel Length 0.413 in, Barrel Style Extra Copper Sleeve on Barrel
