  11. Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK
This item is Discontinued.

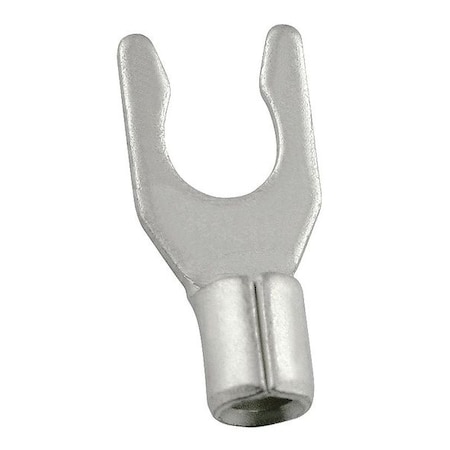

Power First Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK 5WHC7

Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK (Discontinued)

  • Mfr # 5WHC7
  • Zoro # G1733182
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WHC7
Zoro #
G1733182
UPC #
190735599969
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Stud Size
#8
Tongue Width - Wire Connector
0.32 in
Overall Length
0.63 in
Barrel Length
0.189 in
Tongue Length
1/2 in
Tongue Thickness
0.03 in
Tongue Width
0.319 in
Strip Length
1/4 in

Details

Item
Fork Terminal
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Bare
Insulation Coverage
None
Insulation Type
Bare
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
302 Degrees F
Standards
UL/cUL Listed E96029
Wire Range
22 to 16 AWG
Max. Temp.
302 Degrees F
Connection Type
Crimp
Terminal Connection
Crimp
Seam
Butted
Connection Material
Copper
Compatible with Product Type
Insulated Stranded Copper Cable
Contact Finish
Tin
RoHS Compliant
Yes
Insulation Material
None
Seam Style
Butted

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 16 AWG, Stud Size #8, Termination Style Crimp, Tongue Length 0.441 in, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed E96029, Barrel Length 0.189 in, Barrel Style Crimp, Compatible with Product Type Insulated Stranded Copper Cable, Connection Material Copper
