  11. Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK
This item is Discontinued.

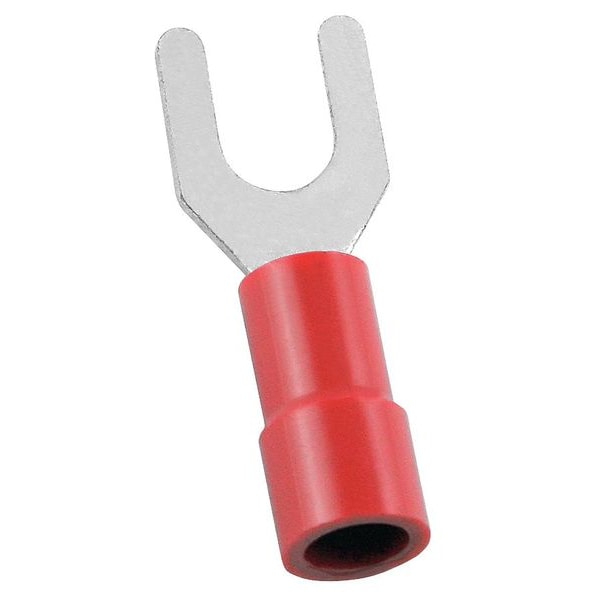

Power First Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK 5WHE5

Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK (Discontinued)

  • Mfr # 5WHE5
  • Zoro # G2472093
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5WHE5
Zoro #
G2472093
UPC #
190735600146
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Stud Size
#8
Tongue Width - Wire Connector
0.32 in
Overall Length
0.866 in
Tongue Width
0.319 in
Barrel Length
0.433 in
Tongue Thickness
0.03 in
Strip Length
1/4 in
Tongue Length
1/2 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Coverage
Partial Coverage
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
UL/cUL Listed E96029
Seam
Butted
Max. Temp.
221 Degrees F
Wire Range
22 to 16 AWG
Terminal Type
Standard
Connection Type
Crimp
Terminal Connection
Crimp
Connection Material
Copper
Special Features
Easy Entry
Contact Finish
Tin
Barrel Style
Easy Entry
Seam Style
Butted
Insulation Material
Vinyl
UL 94 Flammability Rating
V-0
Compatible with Product Type
Insulated Stranded Copper Cable
RoHS Compliant
Yes

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 16 AWG, Stud Size #8, Termination Style Crimp, Tongue Length 0.433 in, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed E96029, Barrel Length 0.433 in, Barrel Style Easy Entry
