Contact our U.S. based teamSpecifications
Product Information
MFR #
31A506
Zoro #
G7519863
UPC #
190735594612
Country of Origin
Taiwan, Province of China
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.906 in
Barrel Inside Dia.
0.197 in
Tab Width
0.25 in
Maximum Wire Size
14 AWG
Tab Thickness
0.032 in
Barrel Outside Diameter
0.197 in
Barrel Size
Standard
Barrel Inside Diameter
0.091 in
Strip Length
1/4 in
Minimum Wire Size
16 AWG
Description

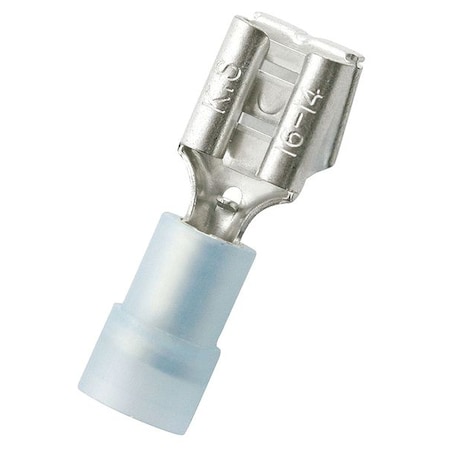

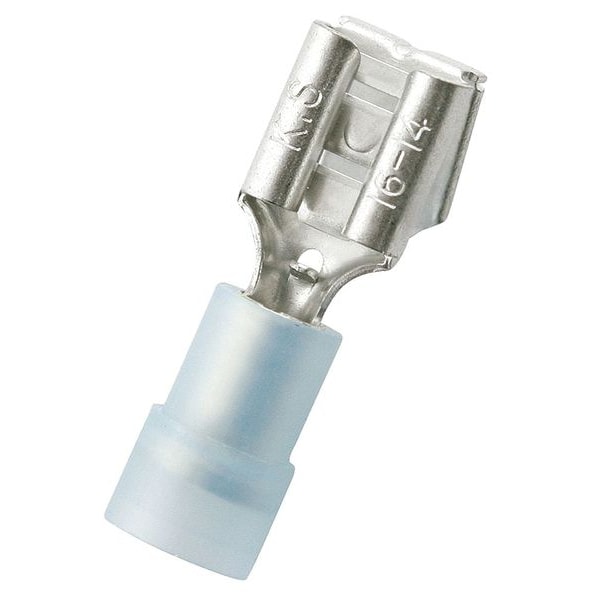

Piggyback Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Piggyback, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket/Tab, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
