Add Tax ExemptionSpecifications
Product Information
MFR #
31A505
Zoro #
G6194194
UPC #
190735594605
Country of Origin
Taiwan, Province of China
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.906 in
Barrel Inside Dia.
0.157 in
Barrel Outside Diameter
0.157 in
Tab Width
0.25 in
Maximum Wire Size
16 AWG
Barrel Size
Standard
Tab Thickness
0.032 in
Strip Length
1/4 in
Minimum Wire Size
22 AWG
Barrel Inside Diameter
0.067 in
Description

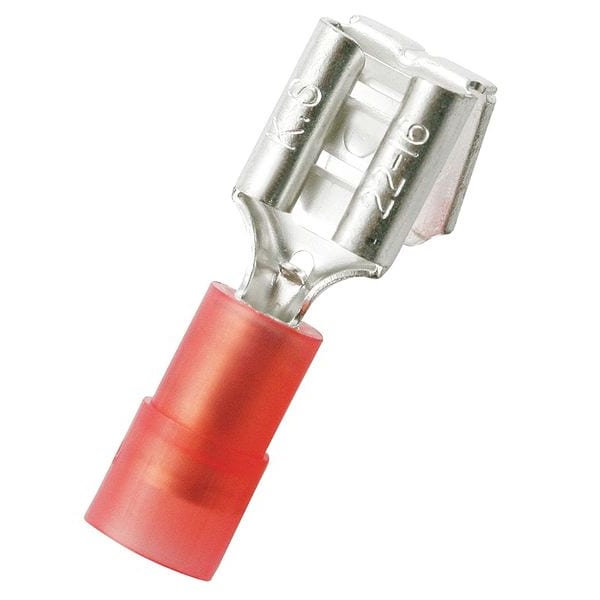

Piggyback Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Piggyback, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket/Tab, Termination Style Crimp, UL 94 Flammability Rating V-2, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed
