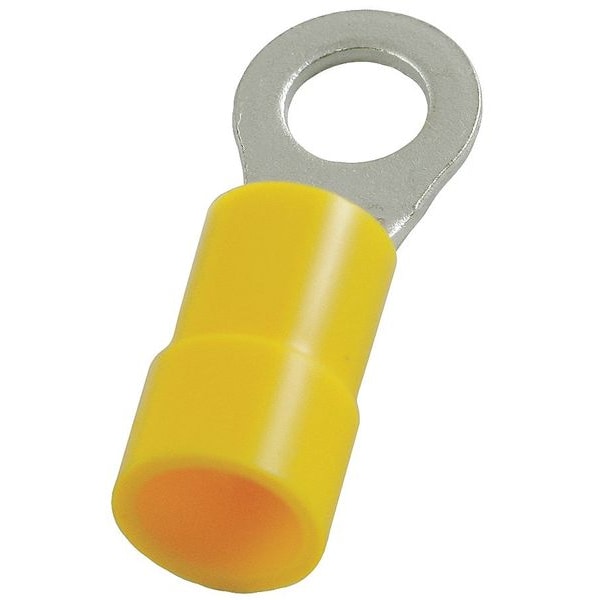

Ring Terminal, #10 Stud Size, 10 AWG, 600 V, Vinyl Insulated, Yellow, Crimp Termination Only, 50 PK (Discontinued)
- Mfr # 4FRH8
- Zoro # G0325613
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4FRH8
Zoro #
G0325613
UPC #
190735597552
Country of Origin
Taiwan, Province of China
Dimensions
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Stud Size
#10
Tongue Width - Wire Connector
0.37 in
Overall Length
1.02 in
Barrel Inside Dia.
0.13 in
Tongue Length
0.51 in
Barrel Outside Diameter
0.25 in
Barrel Size
Standard
Hole Diameter
0.21 in
Tongue Width
0.37 in
Strip Length
3/8 in
Tongue Thickness
0.04 in
Barrel Length
0.51 in
Description
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.37 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Standards UL/cUL Listed E96029, Barrel Inside Diameter 0.13 in, Barrel Length 0.51 in, Barrel Outside Diameter 0.25 in, Barrel Size Standard
