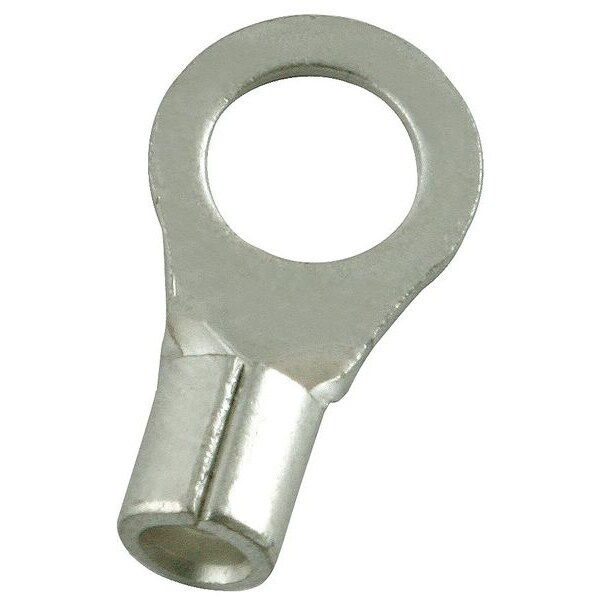

Ring Terminal, #10 Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK (Discontinued)
- Mfr # 4FRG5
- Zoro # G2651101
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4FRG5
Zoro #
G2651101
UPC #
190735597439
Country of Origin
Taiwan, Province of China
Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#10
Overall Length
0.65 in
Tongue Width - Wire Connector
0.36 in
Barrel Inside Dia.
0.09 in
Strip Length
1/4 in
Barrel Length
0.19 in
Barrel Outside Diameter
0.16 in
Tongue Thickness
0.03 in
Tongue Width
0.34 in
Hole Diameter
0.21 in
Barrel Size
Standard
Tongue Length
0.46 in
Description
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.34 in, Contact Finish Tin, Contact Material Copper, Standards UL/cUL Listed E96029, Barrel Inside Diameter 0.09 in, Barrel Length 0.19 in, Barrel Outside Diameter 0.16 in, Barrel Size Standard, Barrel Style Crimp
