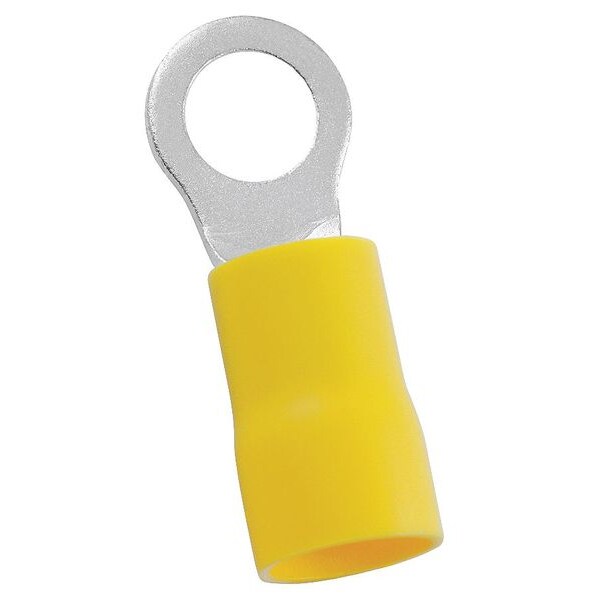

Ring Terminal, 3/8 in Stud Size, 4 AWG, 600 V, Vinyl Insulated, Yellow, Crimp Termination Only (Discontinued)
- Mfr # 5WHA7
- Zoro # G3026721
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5WHA7
Zoro #
G3026721
UPC #
190735599860
Country of Origin
Taiwan, Province of China
Dimensions
Maximum Wire Size
4 AWG
Minimum Wire Size
4 AWG
Stud Size
3/8 in
Overall Length
1.92 in
Tongue Width - Wire Connector
0.65 in
Barrel Inside Dia.
0.3 in
Strip Length
1/2 in
Barrel Size
Standard
Tongue Length
0.97 in
Tongue Thickness
0.07 in
Barrel Length
0.95 in
Tongue Width
0.69 in
Hole Diameter
0.41 in
Barrel Outside Diameter
0.51 in
Description
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Termination Style Crimp, Tongue Width 0.69 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Standards UL Listed E96029, Barrel Inside Diameter 0.3 in, Barrel Length 0.95 in, Barrel Outside Diameter 0.51 in, Barrel Size Standard
