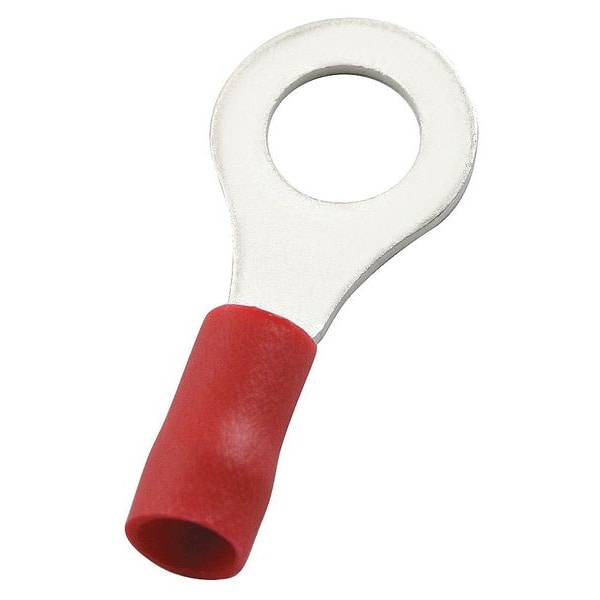

Ring Terminal, #4 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only, 100 PK (Discontinued)
- Mfr # 24C920
- Zoro # G6090847
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24C920
Zoro #
G6090847
UPC #
190735590508
Country of Origin
Taiwan, Province of China
Dimensions
Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Stud Size
#4
Overall Length
0.71 in
Tongue Width - Wire Connector
0.22 in
Barrel Inside Dia.
0.07 in
Hole Diameter
0.13 in
Strip Length
1/4 in
Barrel Length
0.41 in
Tongue Width
0.22 in
Barrel Size
Standard
Barrel Outside Diameter
0.17 in
Tongue Thickness
0.03 in
Tongue Length
0.3 in
Description
Ring Terminal, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Tongue Width 0.22 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Standards UL/cUL Listed E96029, Barrel Inside Diameter 0.07 in, Barrel Length 0.41 in, Barrel Outside Diameter 0.17 in, Barrel Size Standard
