  11. Ring Terminal, #6 Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK
This item is Discontinued.

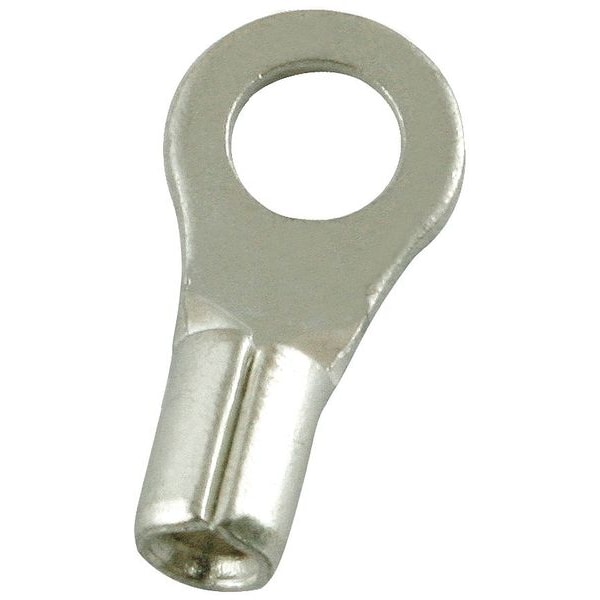

Power First Ring Terminal, #6 Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK 4FRG4

Ring Terminal, #6 Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK (Discontinued)

  • Mfr # 4FRG4
  • Zoro # G2619845
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FRG4
Zoro #
G2619845
UPC #
190735597422
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#6
Tongue Width - Wire Connector
0.26 in
Overall Length
0.57 in
Barrel Inside Dia.
0.09 in
Tongue Length
0.38 in
Tongue Thickness
0.03 in
Hole Diameter
0.15 in
Barrel Outside Diameter
0.16 in
Tongue Width
0.26 in
Barrel Size
Standard
Strip Length
1/4 in
Barrel Length
0.19 in

Details

Item
Ring Terminal
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Bare
Insulation Coverage
None
Insulation Type
Bare
Contact Material
Copper
Maximum Voltage
600 V
Minimum Operating Temperature
257 Degrees F
Maximum Operating Temperature
302 Degrees F
Standards
UL/cUL Listed E96029
Connection Type
Crimp
Seam
Butted
Connection Material
Copper
Max. Temp.
257 Degrees F
Wire Range
16 to 14 AWG
Compatible with Product Type
Insulated Stranded Copper Cable
RoHS Compliant
Yes
Contact Finish
Tin
Insulation Material
None
Connection Orientation
Straight

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.26 in, Contact Finish Tin, Contact Material Copper, Standards UL/cUL Listed E96029, Barrel Inside Diameter 0.09 in, Barrel Length 0.19 in, Barrel Outside Diameter 0.16 in, Barrel Size Standard, Barrel Style Crimp
