This item is Discontinued.

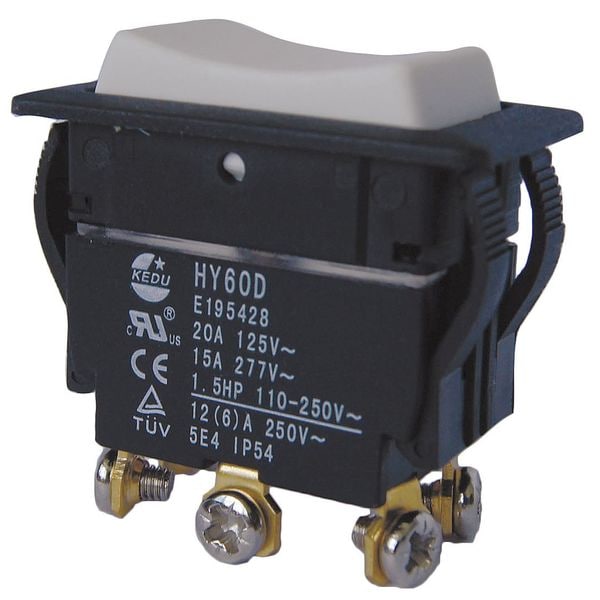

Power First Rocker Switch, DPDT, 6 Connections 29FG43

Rocker Switch, DPDT, 6 Connections (Discontinued)

  • Mfr # 29FG43
  • Zoro # G1844906
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29FG43
Zoro #
G1844906
UPC #
190735591611
Country of Origin
China

Dimensions

Mounting Hole Width
0.83 in
Overall Width
1.7 in
Overall Depth
0.96 in
Mounting Hole Length
1.48 in
Overall Height
0.28 in
Manufacturer Warranty Length
2 yr

Details

Item
Rocker Switch
Contact Form
DPDT
Number of Connections
6
Switch Function
On/Off/Momentary On
Terminals
Screw
Mounting Hole
0.830 in x 1.450 in
AC Contact Rating
15 A @ 277 V, 20 A @ 125 V
HP
1 1/2 hp
Standards
cRUus
Switch Color
White
Body Color
Black
Operating Temp. Range
32 Degrees to 149 Degrees F
Recommended Use
Generators, Industrial Machines
Product Type
Rocker Switch
Includes Lamp Module
No Lamp Module Included
Operating Temperature - Minimum
32 Degrees F
Number of Positions
3
Series
HY60
Lamp Module Type
No Lamp Module Included
Operating Temperature - Maximum
104 Degrees F
Terminal Connection Type
Screw Terminals
Switch Function Configuration
On/Off/Momentary On
Horsepower
1 1/2 hp
Includes Lens
No Lens Included
Lamp Type
No Lamp Module Included
Operator Illumination
Non-Illuminated

Description

Rocker Switch, Contact Form DPDT, Number of Connections 6, Switch Function On/Off/Momentary On, Terminals Screw, Mounting Hole 0.830 in x 1.450 in, AC Contact Rating 15 A @ 277 V, 20 A @ 125 V, DC Contact Rating Not Applicable, HP 1 1/2 hp, Body Color Black, Switch Color White, Operating Temp. Range 32 Degrees to 149 Degrees F, Standards cRUus, IP Rating Not Applicable, Recommended Use Generators, Industrial Machines
